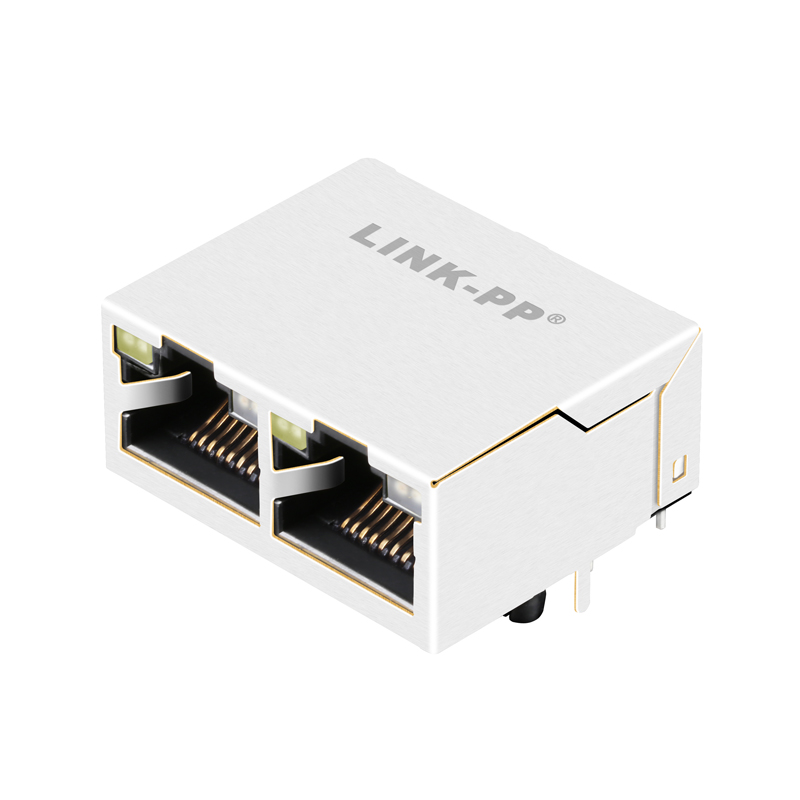

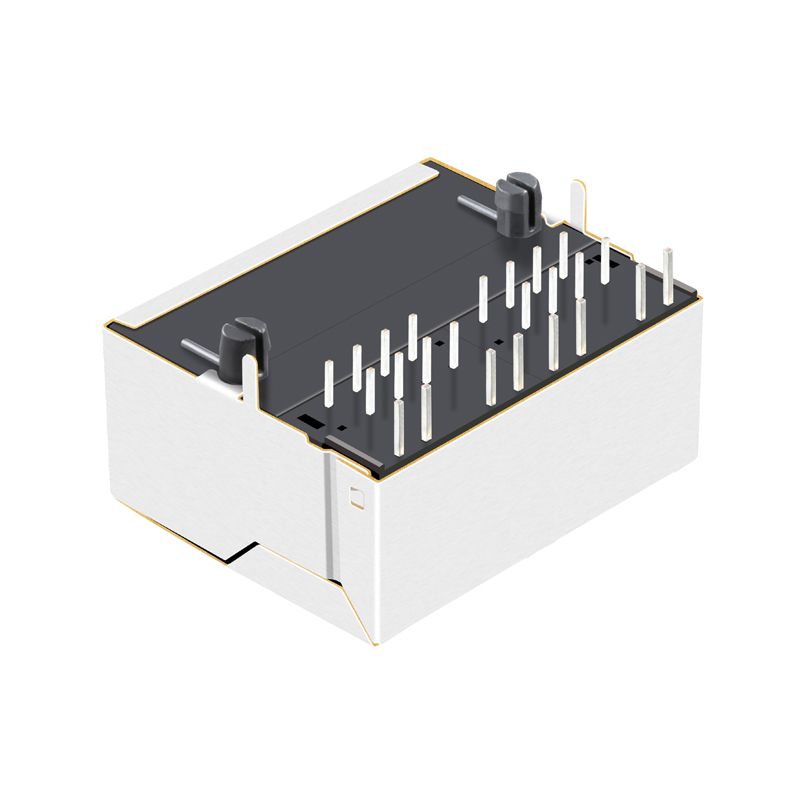

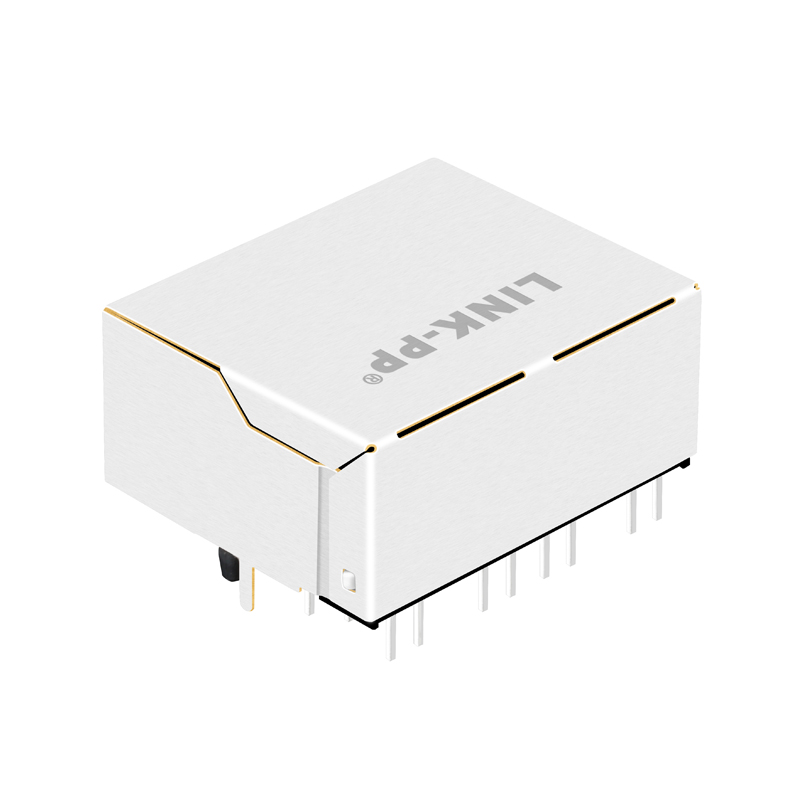

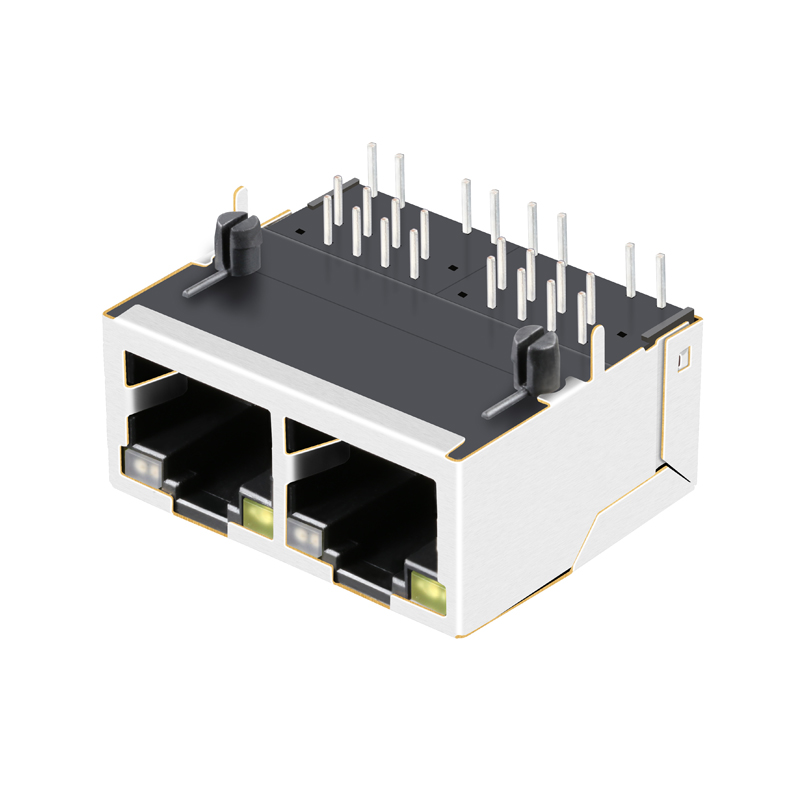

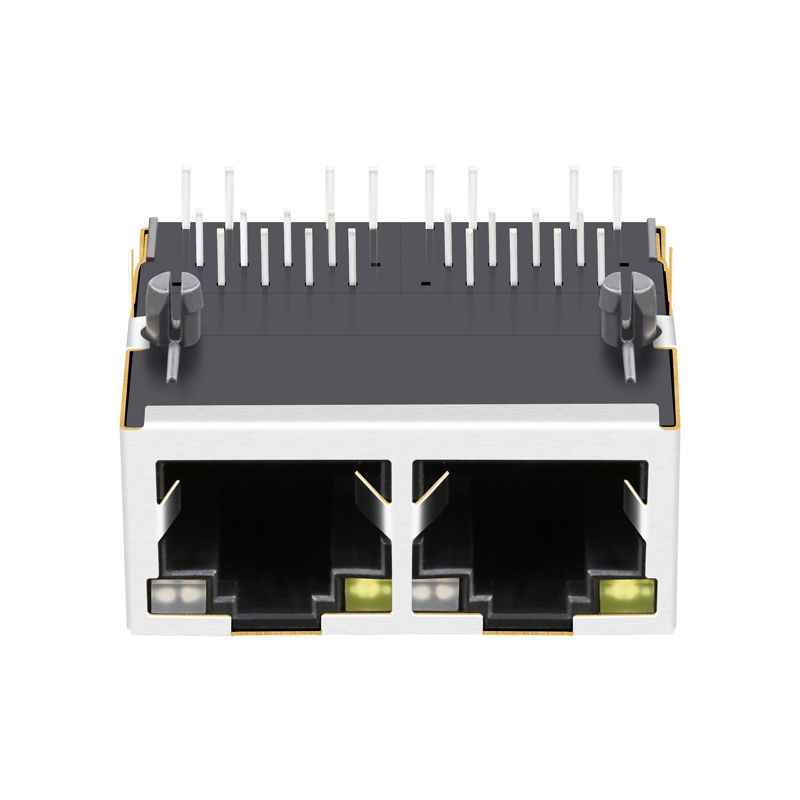

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
| Part Number |
1840538-3 6610128-1 1840538-4 1840538-2 |
| Application-LAN |
ETHERNET(NoN POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
6 |
| Diodes |
NO DIODES |
| LED Option |
GREEN/GREEN |
| Latch |
UP |
| Number of Ports |
1x2 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH |
| Shielding |
Shielded |
| Speed |
10/100 Base-T |
| Temperature |
0 ~ 70℃ |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
- Quality Guarantee: 6 Years
Competitive Price & Service
- More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS FEDEX Or TNT
Shielded Magnetic Qual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Frequently Asked Questions (FAQ)
What are the primary applications for these RJ-45 connectors?
These shielded magnetic dual ports RJ-45 connectors are designed for Ethernet LAN applications (Non-PoE configurations) with supporting speeds of 10/100 Base-T.
What options are available for the contact mating area plating?
We provide flexible custom choices for the contact mating area plating, including Gold 6u", 15u", and 30u" thickness options to fit your project requirements.
Are these RJ-45 connectors compliant with environmental standards?
Yes, these connectors comply with standard environmental safety regulations, featuring RoHS compliance (specifically RoHS-5 with lead in solder exemption) and Reach certification.
What are the temperature tolerances of this product series?
The recommended standard operating temperature range for these RJ-45 connectors is 0℃ to 70℃, suitable for commercial network equipment environments.
Can you customize the design if our project has specific pinout or LED requirements?
Yes. We offer design support to meet specific customer requirements. Free samples are also available to assist in design validation before mass production.
What is the standard delivery timeframe for mass production orders?
The average delivery timeline is 2 to 3 weeks after your order confirmation. Shipping costs are highly optimized, offering up to 90% off standard rates via major logistics services like DHL, UPS, FEDEX, or TNT.
