The Part Number package: 110 pcs in 1 tray, which is 34.5*34.5*27cm, 5.5KGS (550pcs) of each carton.
Characteristics
RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores
Production Facility & Certifications
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components as well as strong technical support.
Main Products
10/100/1000M LAN pulse transformer and filter
RJ45 connector with 10/100/1000M magnetic
T1/E1, T3/DS3/E3/STS-1 interface line transformer
ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
We have exported our products to more than 30 countries and regions worldwide, covering major international markets including Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to be our long-term partner.
Frequently Asked Questions

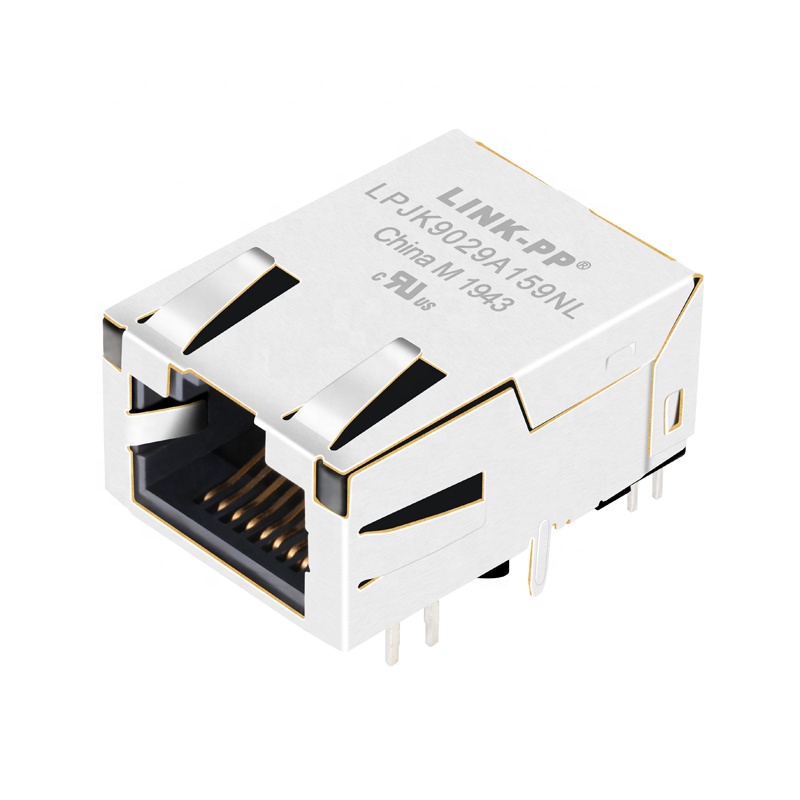

Q1: What is the main application of the LPJK9029A159NL RJ45 connector?
A: It is specifically designed for 5G Base-T and AutoMDIX LAN applications, offering high-speed network support.
Q2: Does this RJ45 connector support Power over Ethernet (PoE)?
A: Yes, it supports Power over Ethernet (PoE) configurations up to 50 Watts and network speeds up to 10 Gbit/s.
Q3: What are the packaging specifications for shipping?
A: The standard packaging contains 110 pieces in one tray. A full shipping carton contains 550 pieces, weighs 5.5KGS, and measures 34.5*34.5*27cm.
Q4: What certifications and standards does this product comply with?
A: It complies with standards like IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt. The production system is certified under ISO9001:2000, ROSH, REACH, CE, and UL.
Q5: What is the operating temperature range for this connector?
A: The connector operates reliably within a standard temperature range of 0°C to 70°C.
Q6: What mounting and termination style does this product use?
A: It features a Through Hole mounting style with a 90° Angle (Right orientation) and is secured via Solder termination.
