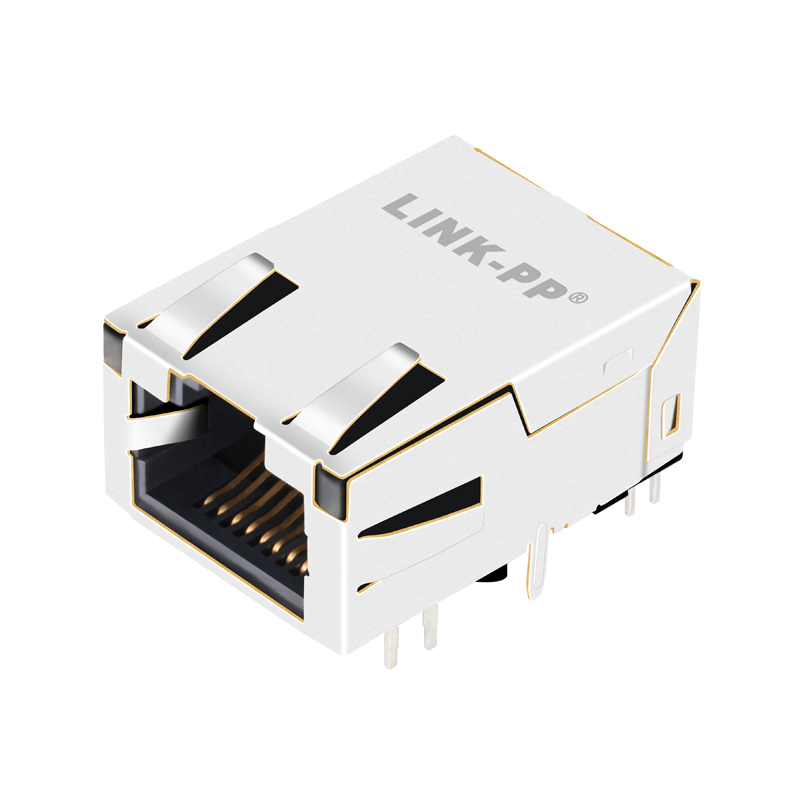

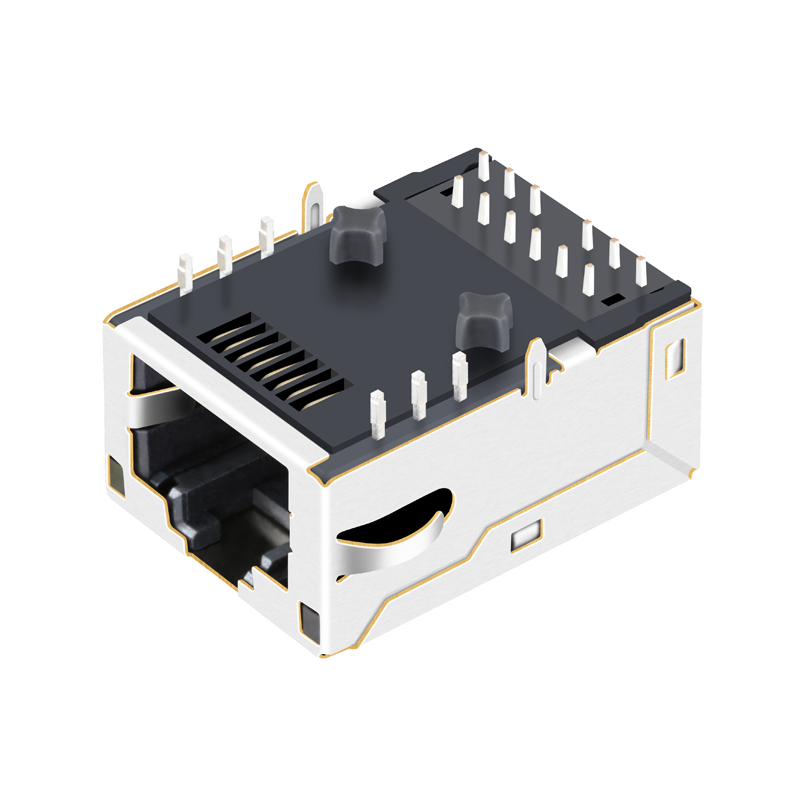

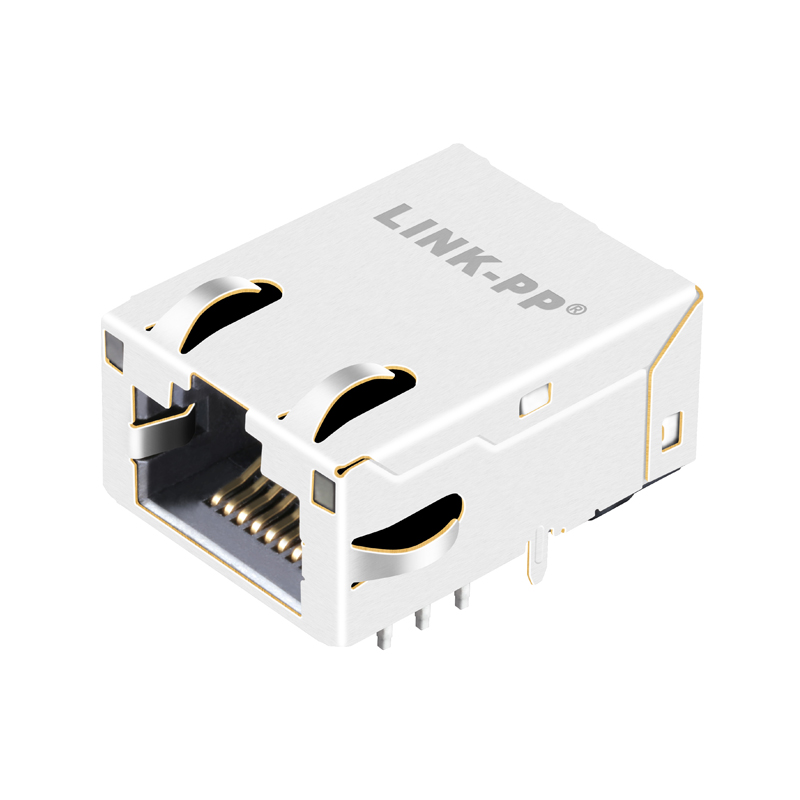

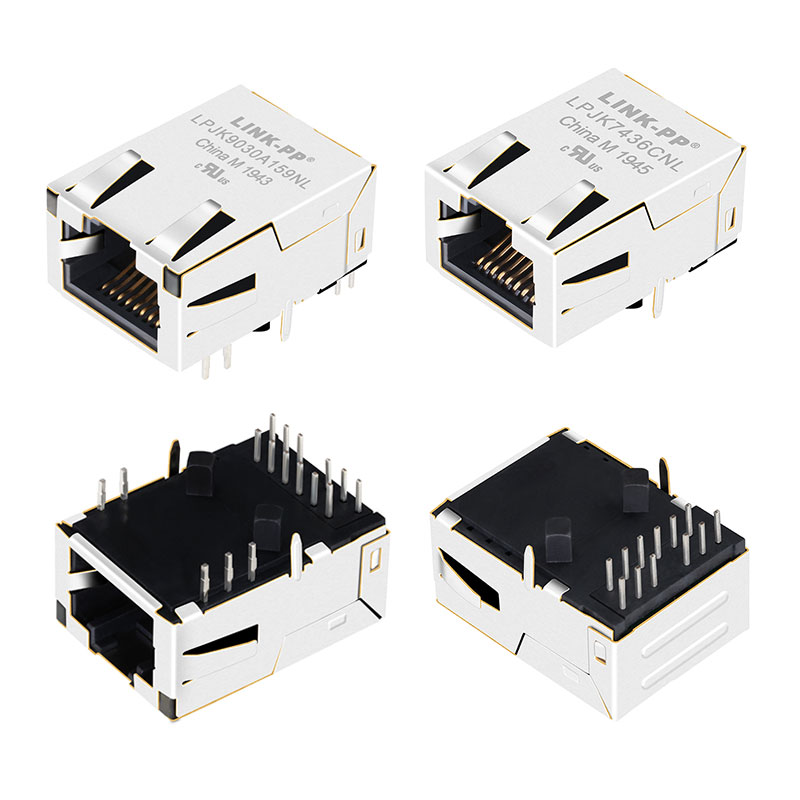

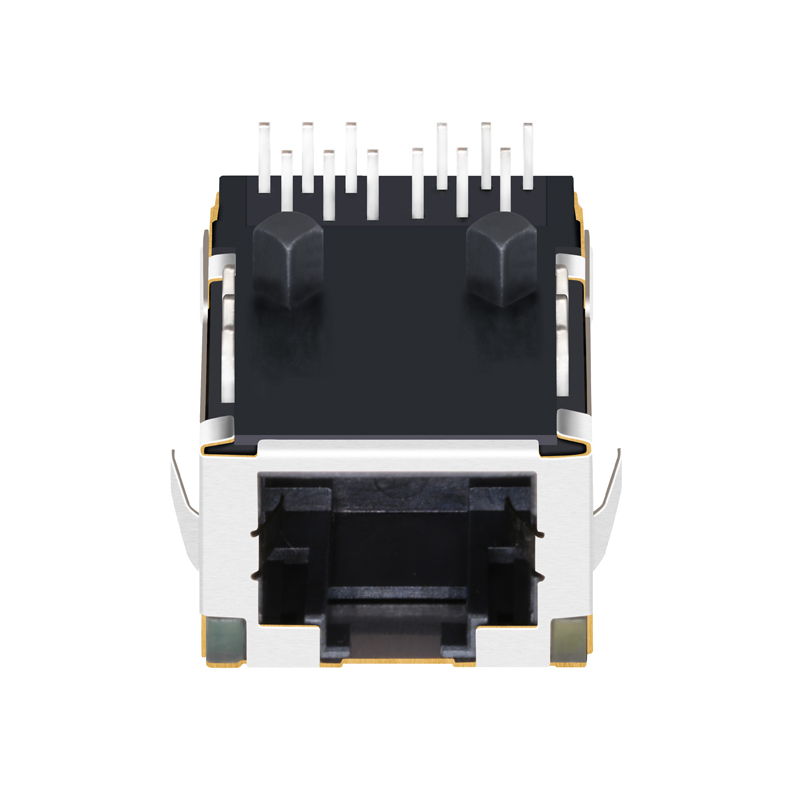

100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
1 / 5
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

Send Inquiry

Product Description

Characteristics

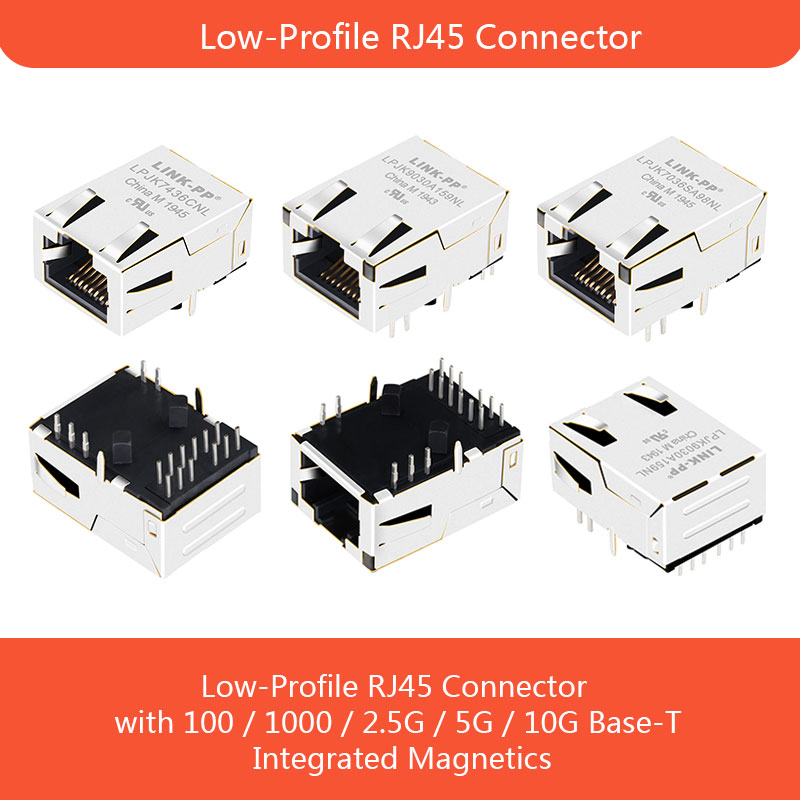

RJ45 Characteristics
✓ RJ45 Connector with integrated transformer / common mode choke.
✓ Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s.
✓ Available in SMT, THT and THT with USB.
✓ Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt.
✓ HPLE products: Improved Common Mode Rejection due to additional NiZn cores.
Product Specifications
Model NumberLow profile rj45 jack
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(PoE/Non_PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger
Number of PortsSingle Port
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery
📦 Packaging Details:

Package: Tray

Carton size: 40*32*33cm

G.W./Carton: 12.3kg

Qty/Carton: 1200pcs

SPQ: 50pcs

N.W/pcs: 0.01kg

Packing Info
Production & Facility Display
Facility Detail
Frequently Asked Questions
How do you guarantee product quality?
We maintain strict quality control by always providing a pre-production sample before mass production and conducting a final inspection before shipment.
What types of products can I purchase from you?
Our product range includes RJ45 Magnetic connectors, Lan transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
What are your core manufacturing advantages?
We are a specialized manufacturer with over 19 years of experience in RJ45 connectors and LAN transformers, holding certifications such as ISO9001:2008, UL, REACH, and CE with high production capacity.
What transmission speeds do your RJ45 jacks support?
Our connectors support a wide range of speeds including 10/100/1000 Base-T as well as high-speed 2.5G, 5G, and 10G Base-T with AutoMDIX.
What payment and delivery terms are available?
We accept various delivery terms including FOB, CFR, CIF, EXW, DDP, and others. Payment can be made via T/T, L/C, Credit Card, PayPal, and Western Union in multiple currencies.
Are these connectors PoE compatible?
Yes, our RJ45 connectors support Power over Ethernet (PoE) up to 50 Watt and are compliant with IEEE 802.3af, 802.3at, and upcoming 802.3bt standards.
