Product Description

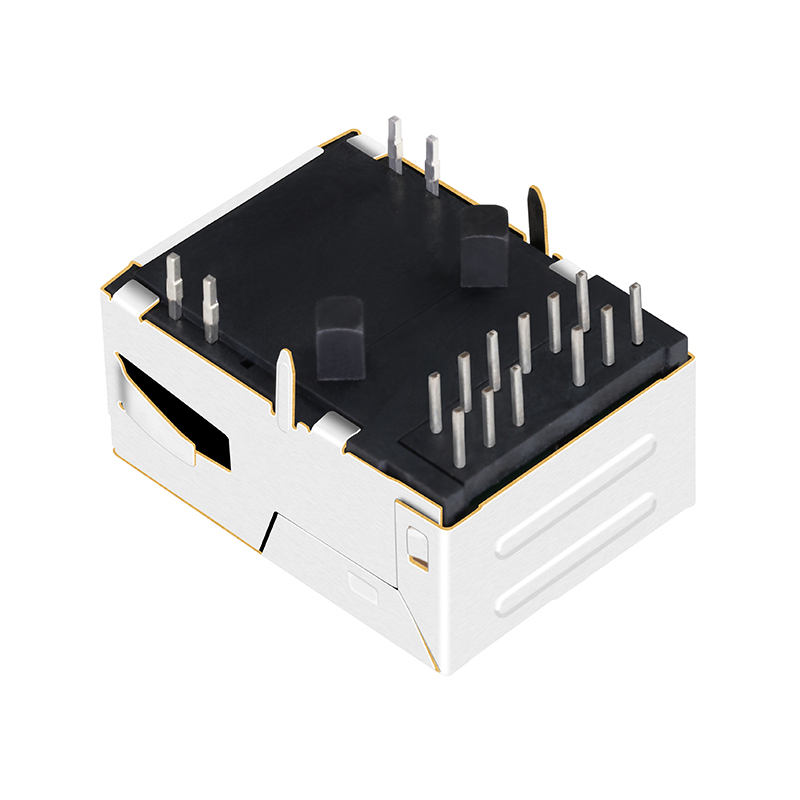

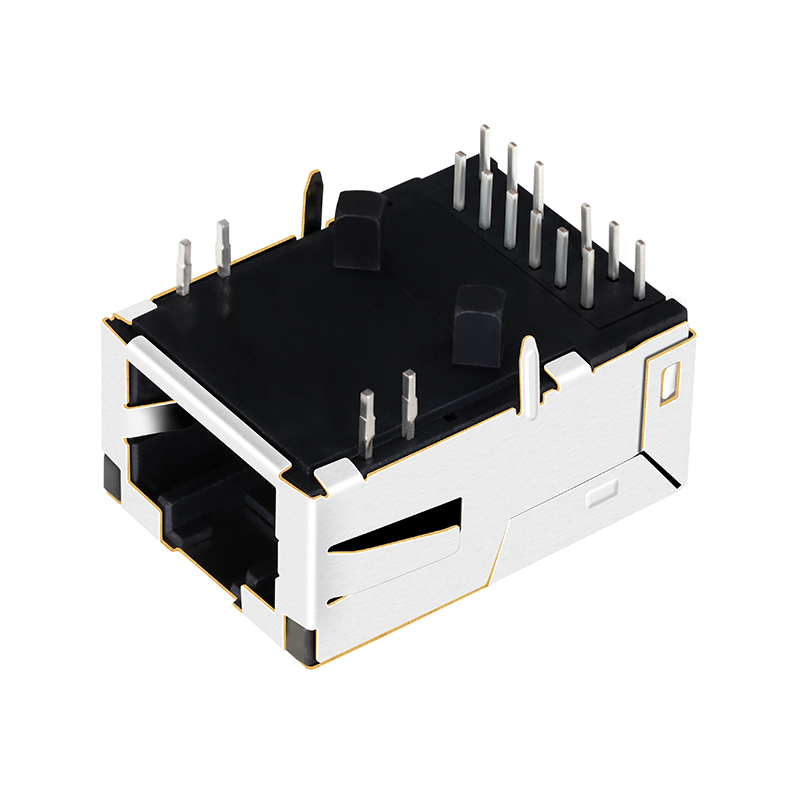

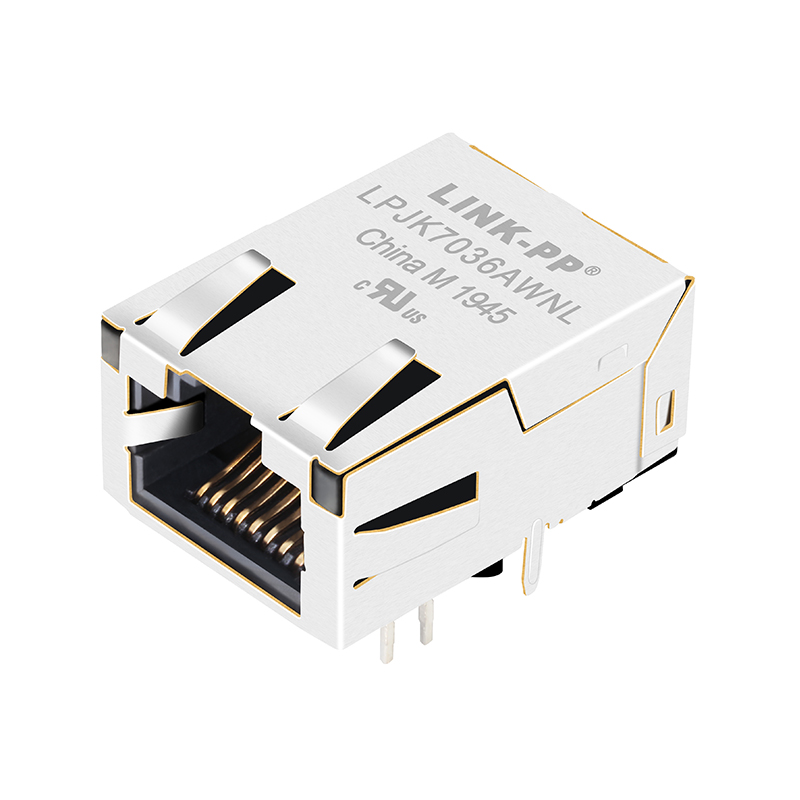

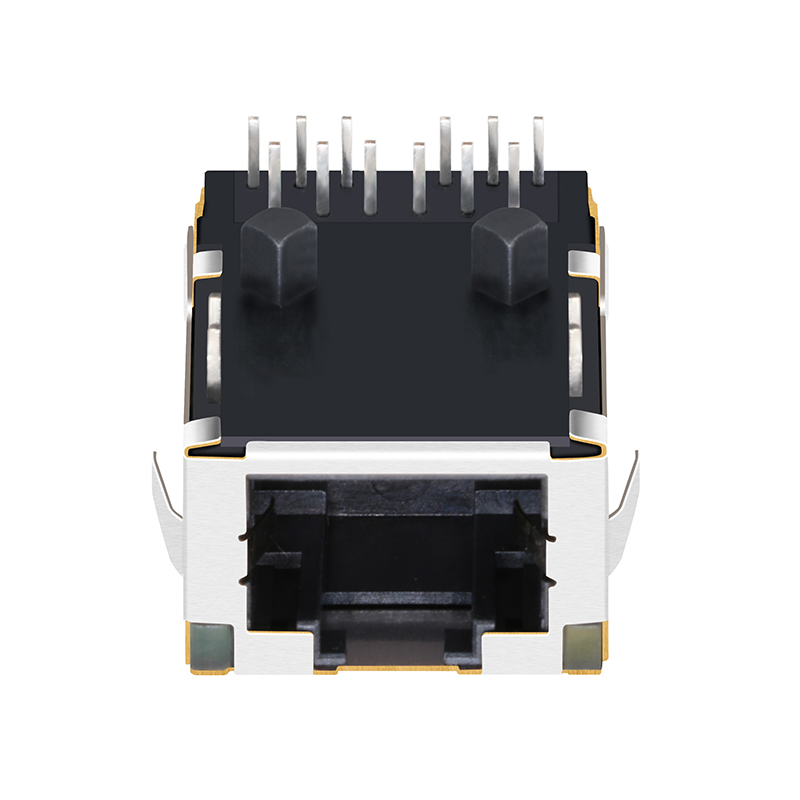

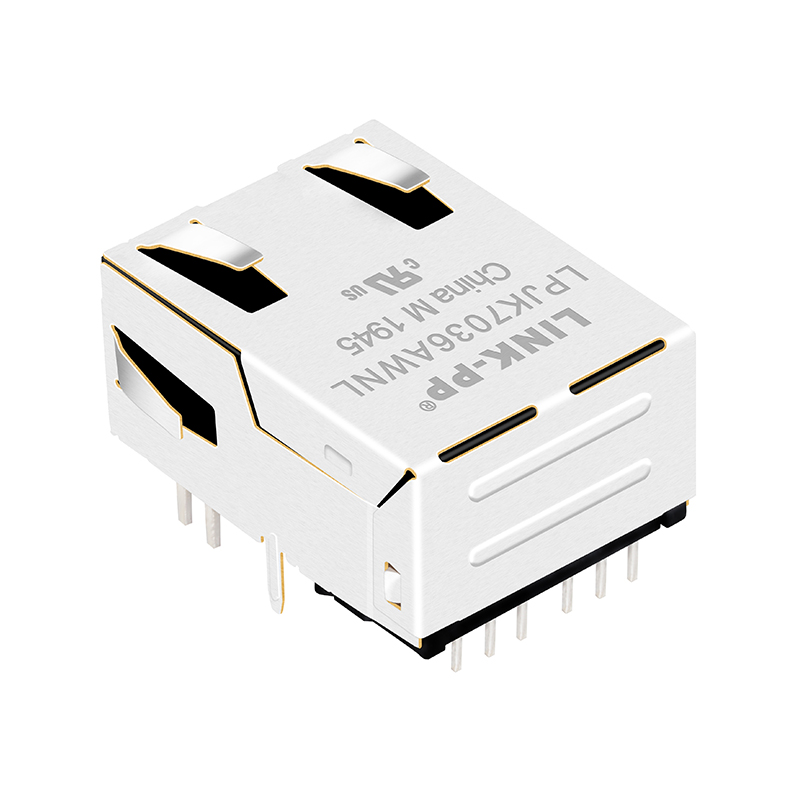

L829-1G1T-43 Tab Up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds
Product Overview
Products Description
ItemRJ45 Female Connector
Part NumberLPJK7036AWNL
Compatible WithL829-1G1T-43
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100/1000 Base-T
LatchUp
Cores per Port8
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionGreen/Green
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Product Detailed View
💡 High-Performance Connectivity Solutions
Connector Varieties
Technical Drawing
Dimensions
Material Specification
Electrical Performance
Packaging Information
Certifications
Company Profile
Established in 1997, the company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve global OEMs, contract manufacturers, and CEMs across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer technology.
Production Facility
Quality Control
Testing Laboratory
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though the shipping fee is covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries for detailed discussion on custom requirements.
What is your competitive advantage?
With 19 years of production experience, we have established long-term partnerships with leading industry partners such as Intel and Jabil.
