Product Description

Ethernet Connectors Overview
J0G-0001NL 10/100/1000 Base-t Tab Up Ethernet Low Profile RJ45 Connector With Leds
⚙️
Products Description: High-performance RJ45 female connector designed for modern networking equipment, providing stable 10/100/1000 Base-T transmission.

Technical Specifications

ItemRJ45 Female Connector
Part NumberLPJK7003A98NL
Compatible WithJ0G-0001NL
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non-PoE)
Number of Ports1x1 Port
Speed10/100/1000 Base-T
LatchUp
Cores per Port8
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionWith
PCB MaterialFR4
PCB Retaining PostT POST
Temperature Range0℃ TO 70℃
Bst CircuitYes
AutoMDIXYES
Contact PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C

Product Visuals

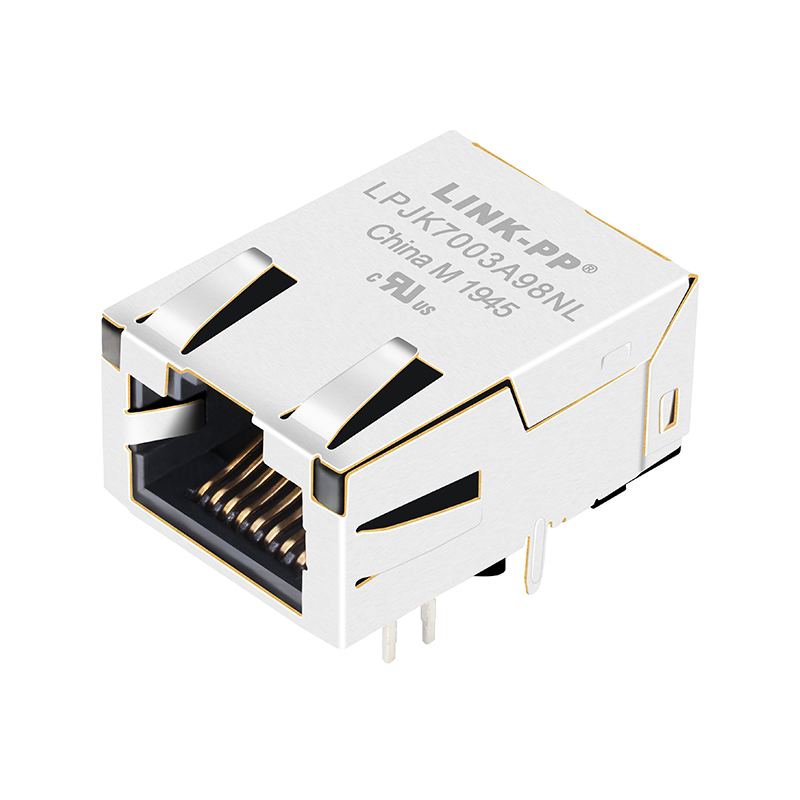

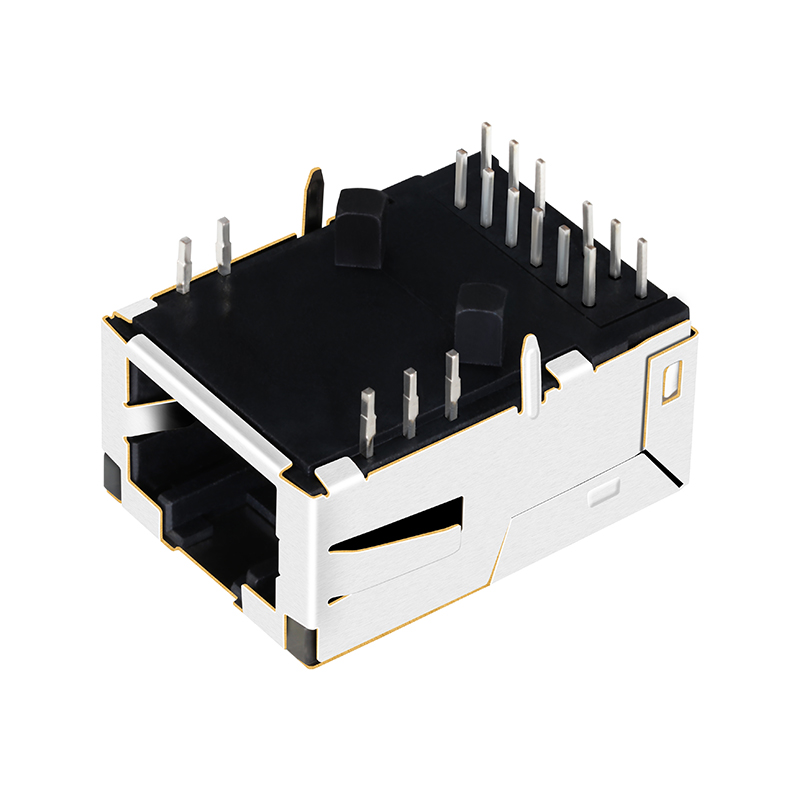

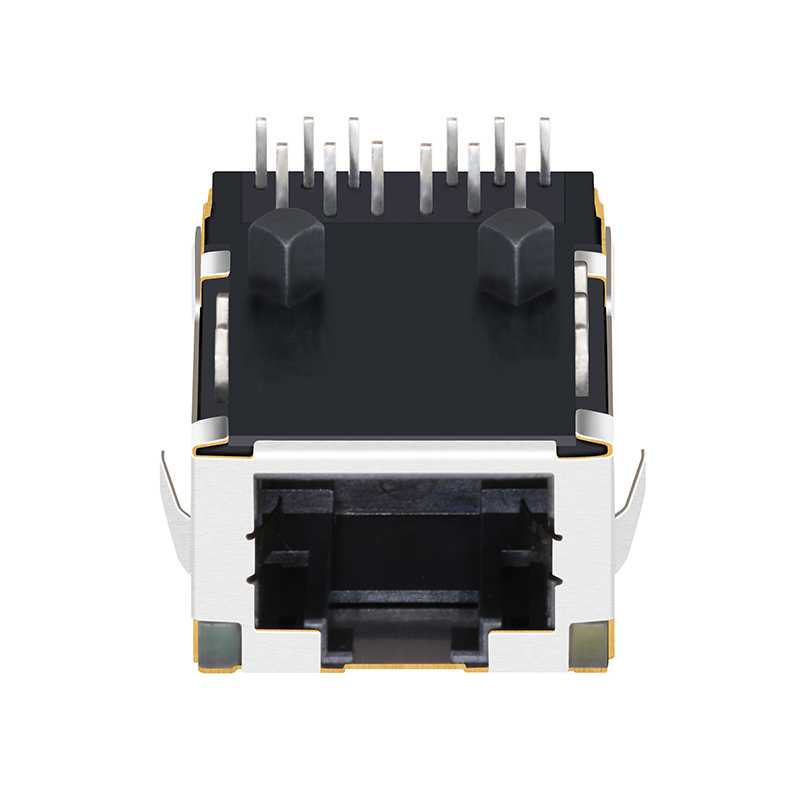

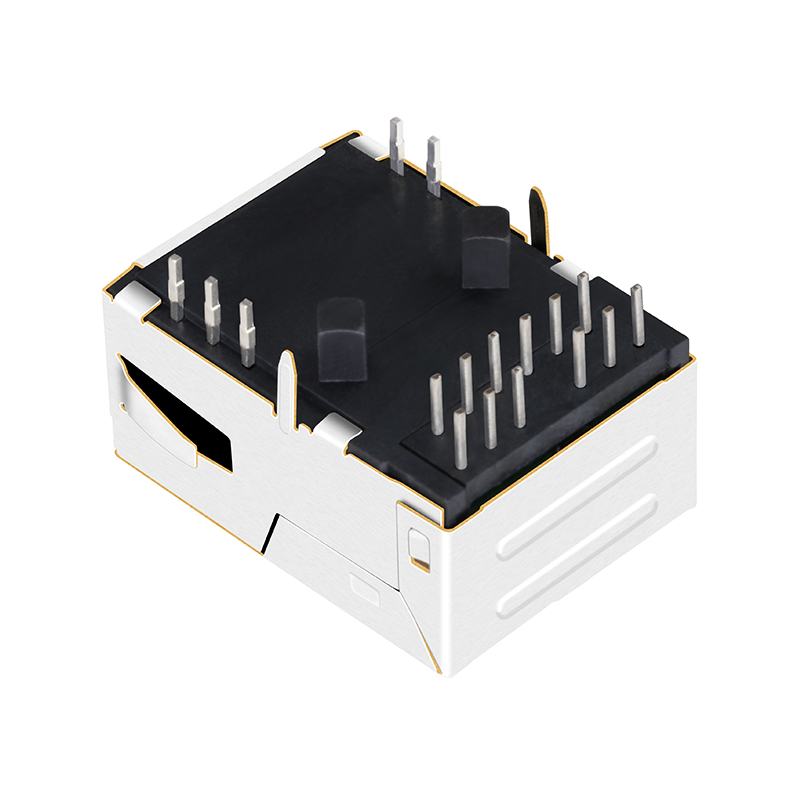

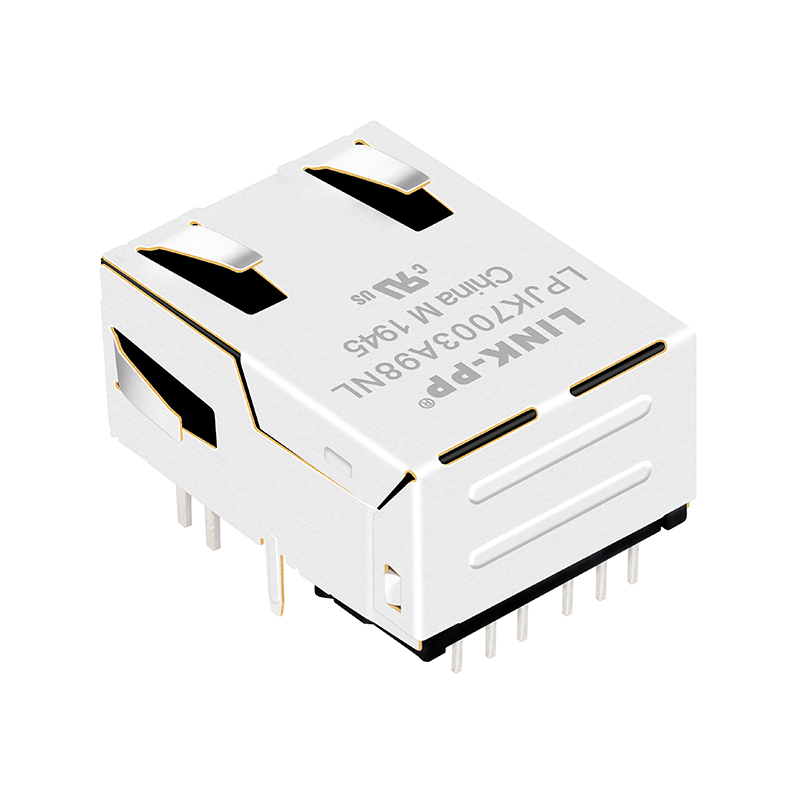

Product View

Professional Manufacturing

🏭
Professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. A global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries.

Frequently Asked Questions

Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately. For mass production, the lead time is generally 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us for a detailed discussion regarding your specific requirements.
What are your main advantages?
With 19 years of production experience, we have established long-term partnerships with leading industry players like Intel and Jabil.
