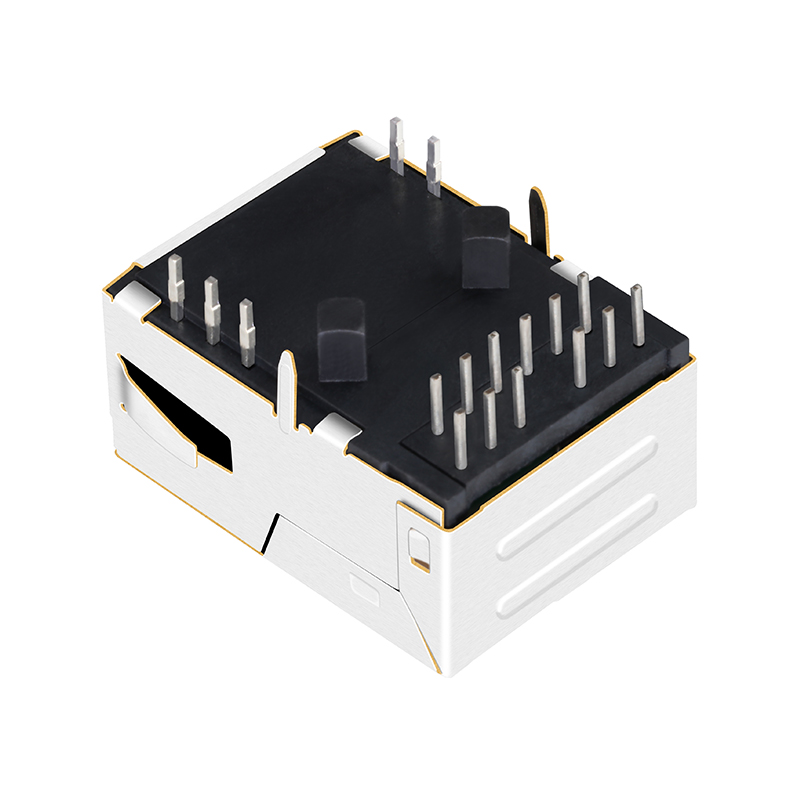

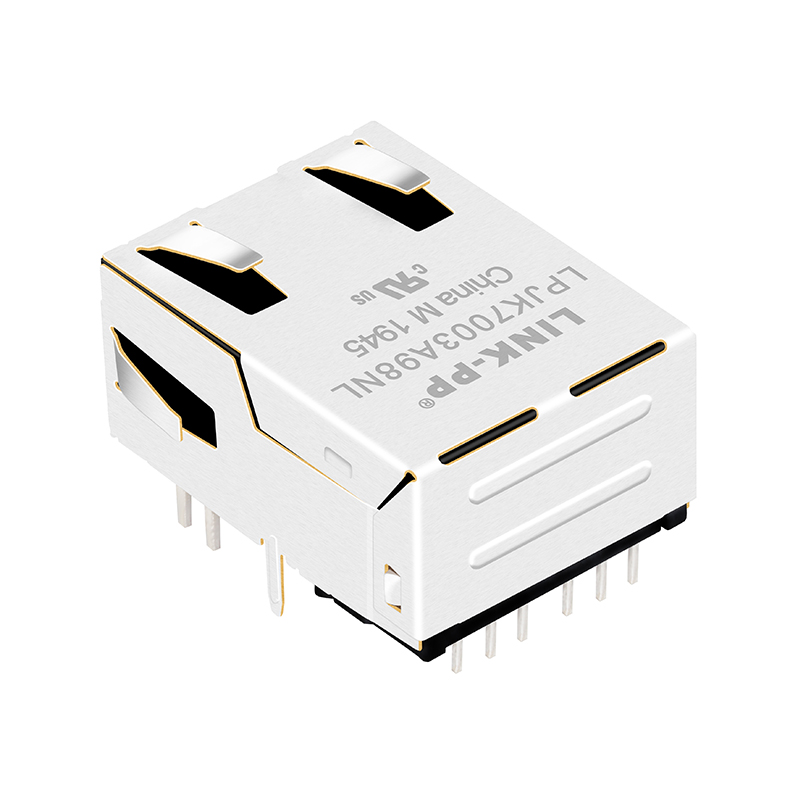

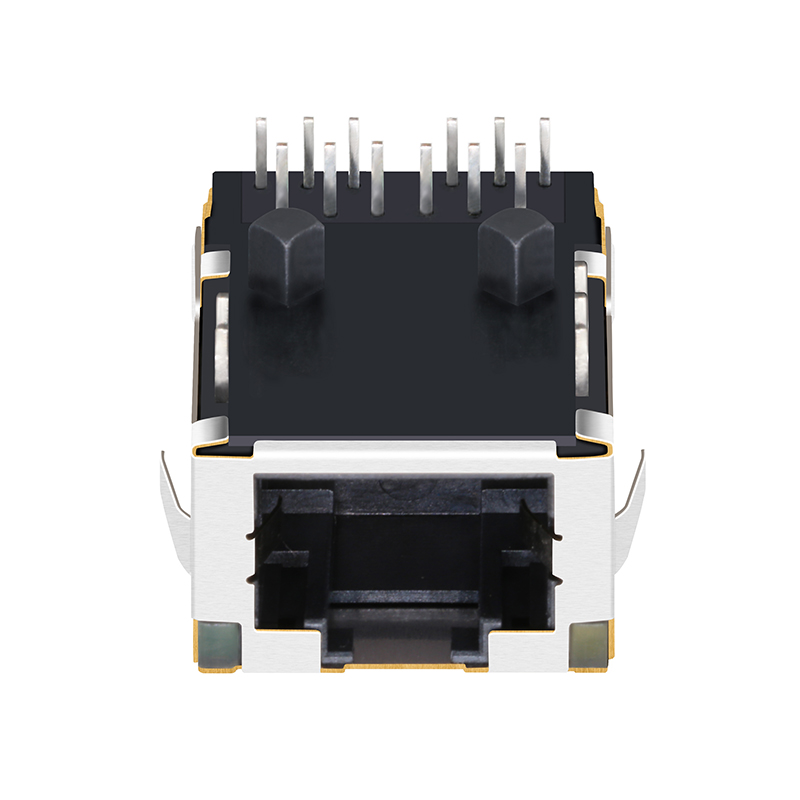

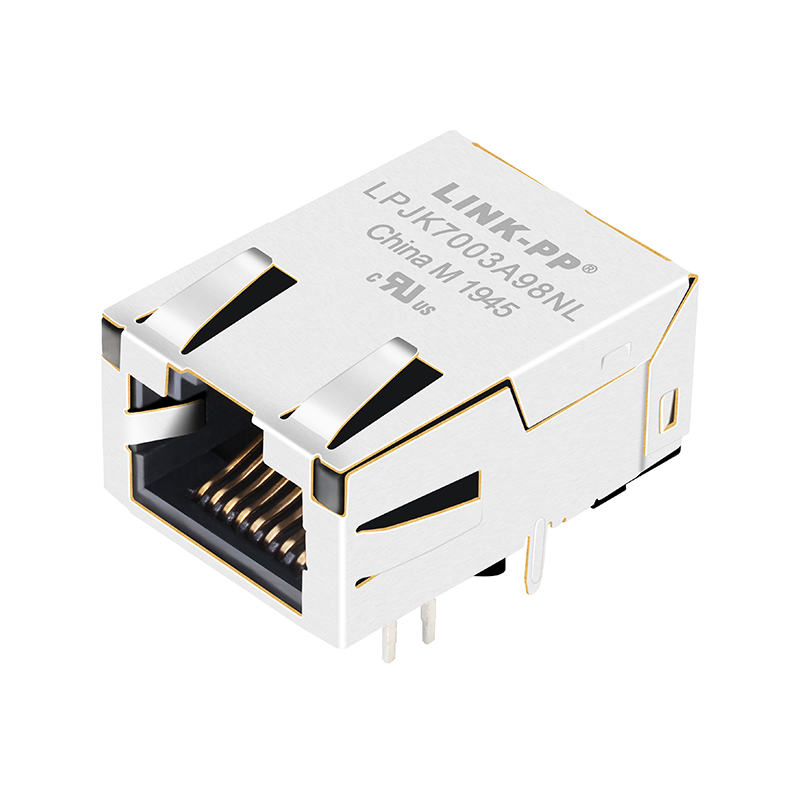

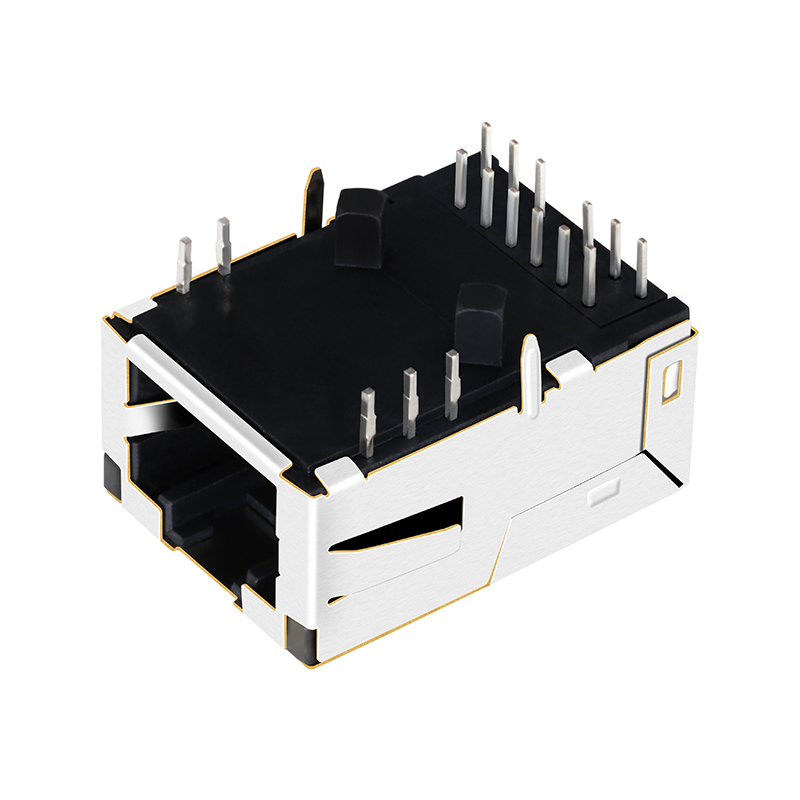

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

Product Description

Integrated Ethernet Connector Overview
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Products Description
Item RJ45 Female Connector
Part Number LPJK7003A98NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port, Low Profile
Speed 10/100/1000 Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Orange & Green / Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Connector Side View
Connector Bottom View
Production Process 1
Production Process 2
Quality Inspection
Packaging Showcase
Product Category Guide
Product Categories Overview
Product Variant 1
Product Variant 2
Product Variant 3
Product Variant 4
Product Variant 5
Product Variant 6
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we operate as a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading provider of Ethernet RJ45 connectors and LAN transformers.
Manufacturing Facility
Testing Lab
Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with shipping fees covered by the customer.
3. What is your delivery time?
Products in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
4. What after-service can you offer?
We provide a one-year warranty period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM orders. Please reach out with your requirements so we can discuss the details.
6. What is your main advantage?
We have over 19 years of production experience and have partnered with major global industry leaders for many years.
