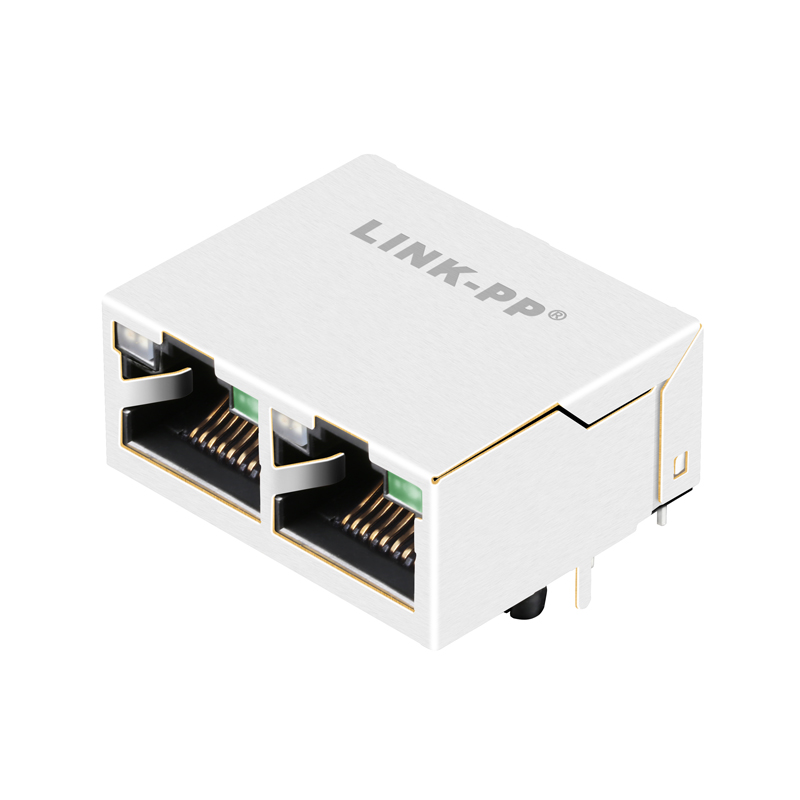

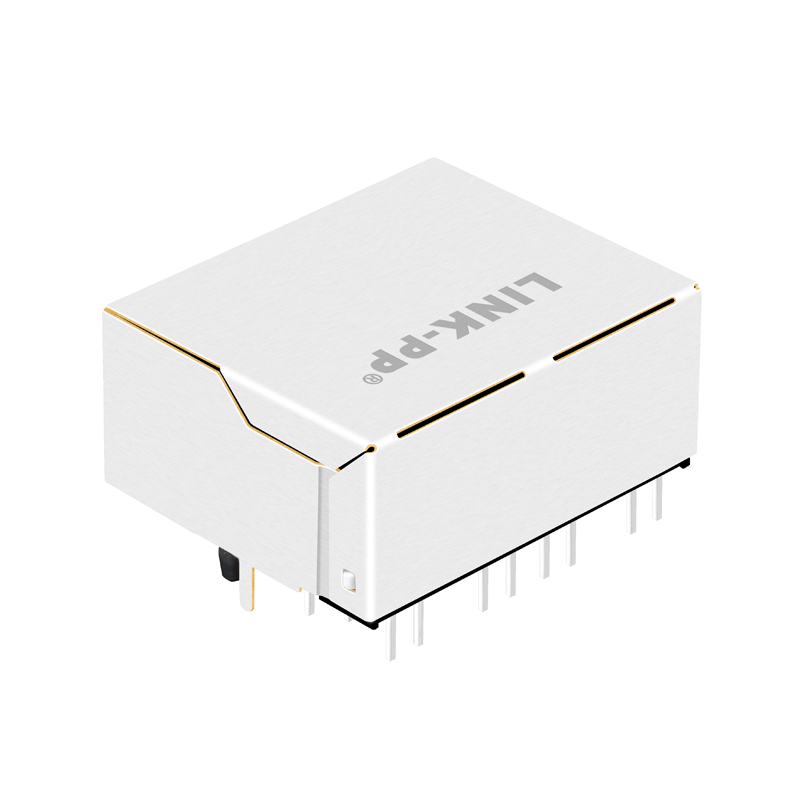

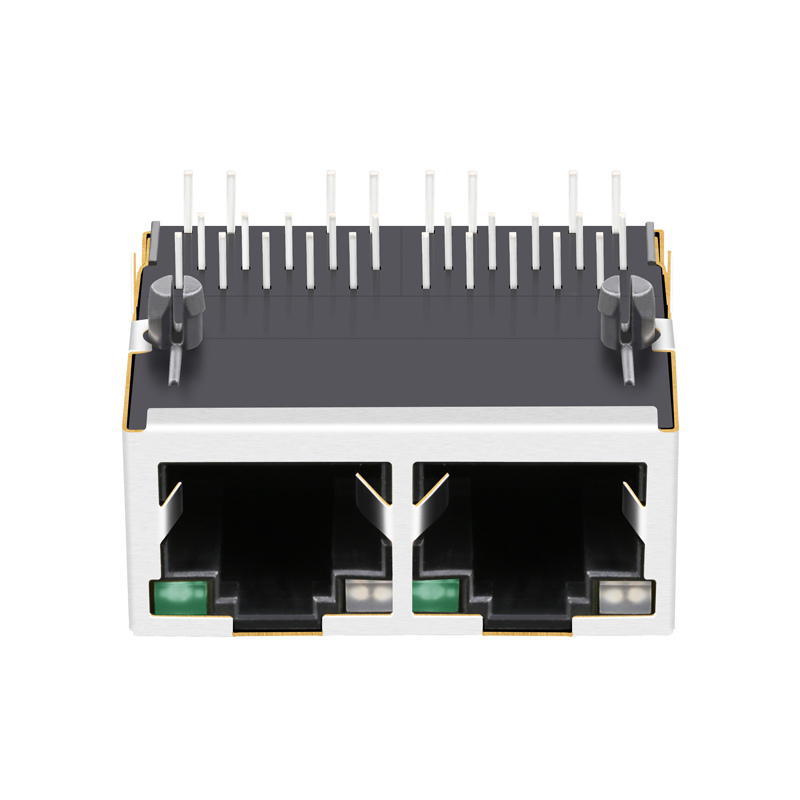

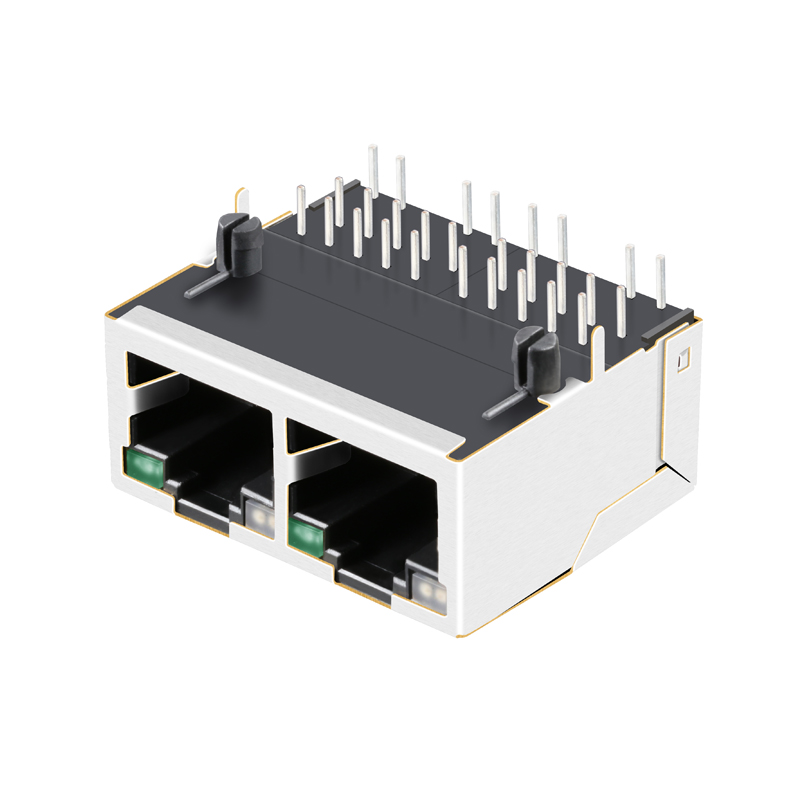

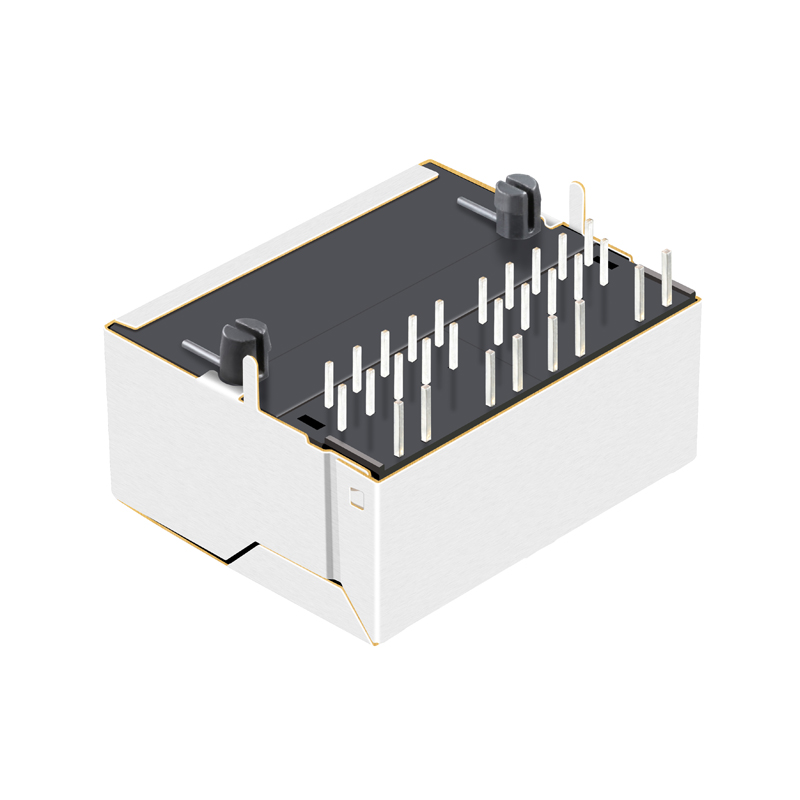

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

Send Inquiry

Product Description

Part Number	5-6610197-1
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	4
Diodes	NO DIDES41
LED Option	GREEN/YELLOW
Latch	UP
Number of Ports	1X2
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	10/100 BASE-T
Temperature	0 TO 70°C/-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

100% Guarantee Quality

Competitive Price & Service

Corporate Policy

The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
Committed To And Expects Quality Performance From Every Employee
The Company Standard Is Defect-Free Products And Services

Preferred Supplier Of TI Samsung Cisco Siemens …

You Will Look At Our Logo On BeagleBone Board

Frequently Asked Questions (FAQ)

Q1: What is the transmission speed of the 5-6610197-1 connector?

A1: This RJ45 female connector supports 10/100 BASE-T Ethernet speeds.

Q2: What is the port configuration and latch direction?

A2: The connector features a 1X2 Harmonica Jack (2 ports) configuration with a Latch-Up option.

Q3: Does the connector include LED indicators?

A3: Yes, the connector comes with Green and Yellow integrated LEDs.

Q4: What is the operating temperature range?

A4: The operating temperature range is certified from 0 to 70°C, and extends from -40 to 85°C for industrial environments.

Q5: What pin mounting type is used for installation?

A5: It utilizes THT (Through-Hole Technology) Solder pins with a side-entry PCB mount angle.

Q6: Is this product RoHS compliant?

A6: Yes, it is RoHS-5 compliant with a standard exemption for lead in solder.
