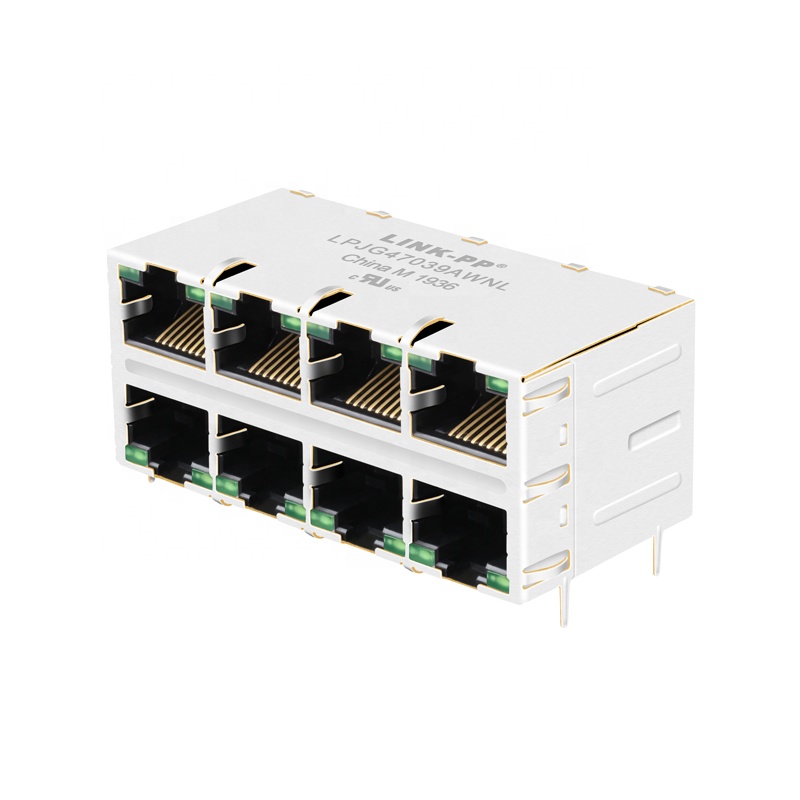

China Manufacturer for PoE+ 2.5G Jack Connector RJ45 Socket

Product Description

Connector Category Selection
LAN Transformer Category Selection
Send Inquiry To Get Latest Price List
Product Spec Diagram 1
Product Spec Diagram 2
Products Description
Item RJ45 Female Connector
Part Number LPJG47039AWNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(PoE+)
Number of Ports 2x4 Port
Speed 2.5G Base-T
Latch Both
Cores per Port 10
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Details View 1

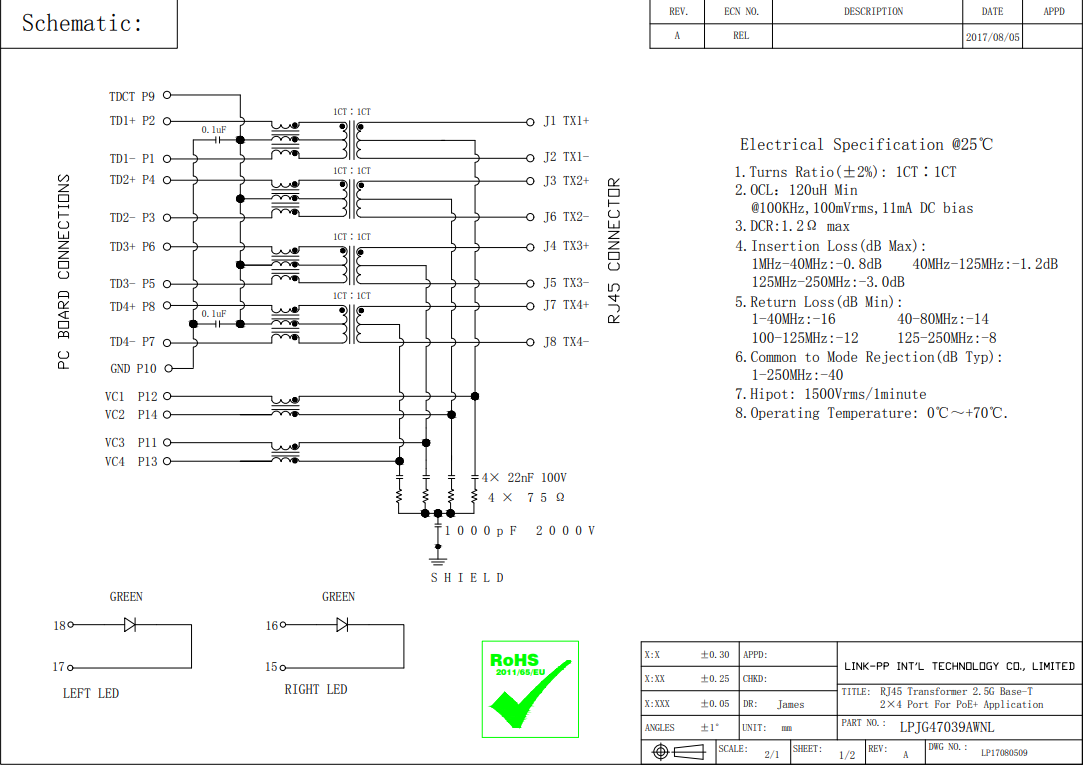

Details View 2

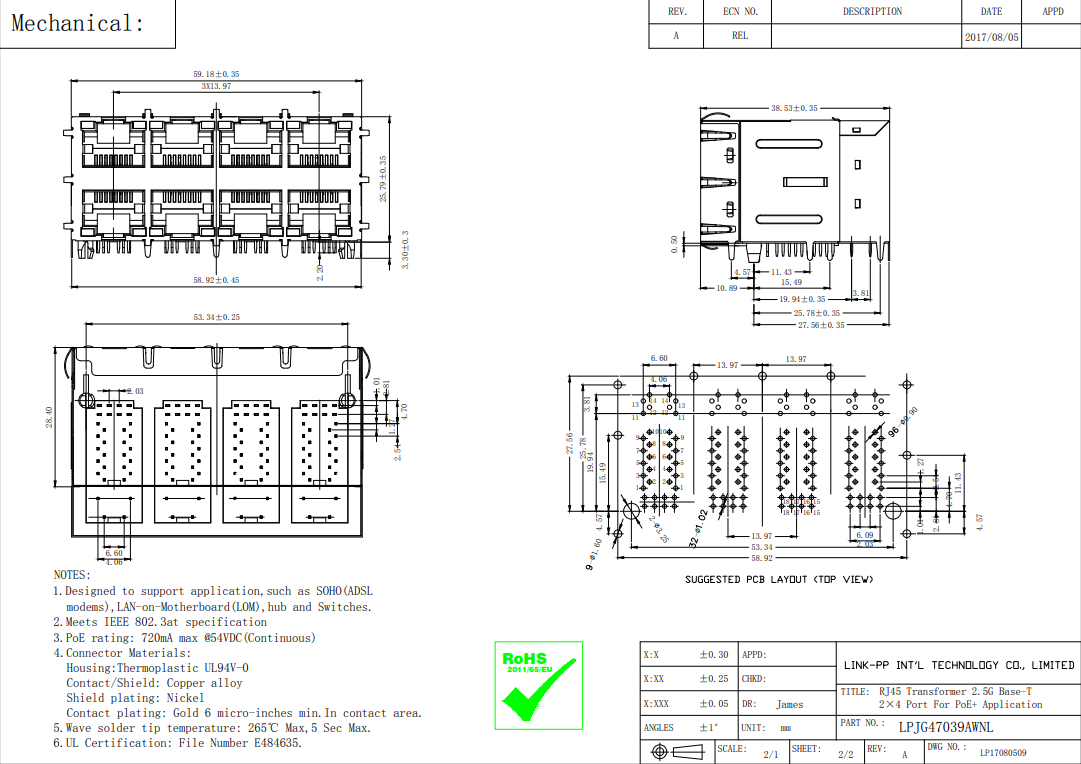

Details View 3
Details View 4

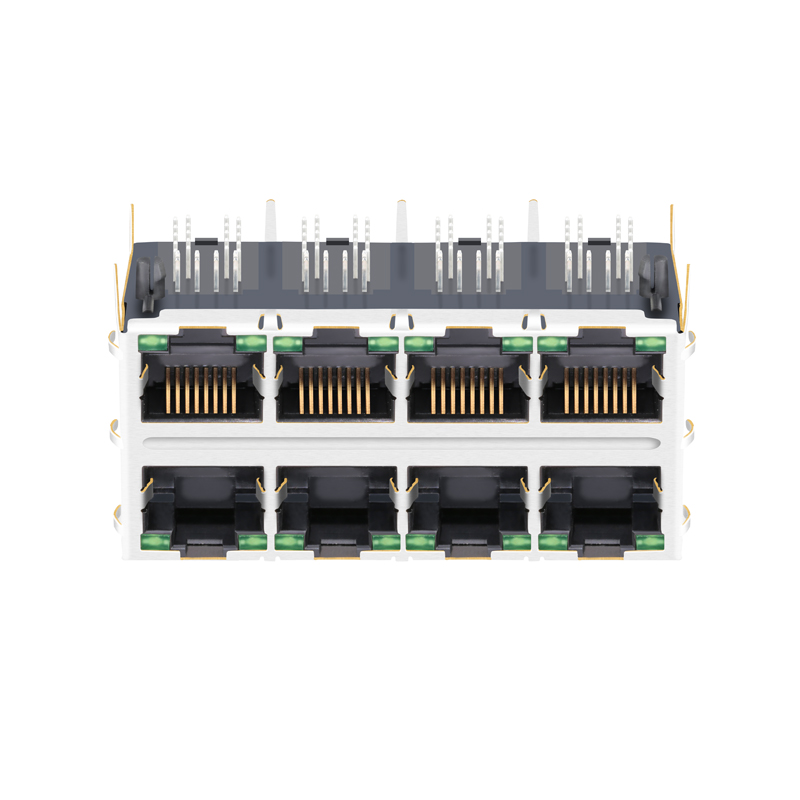

Details View 5

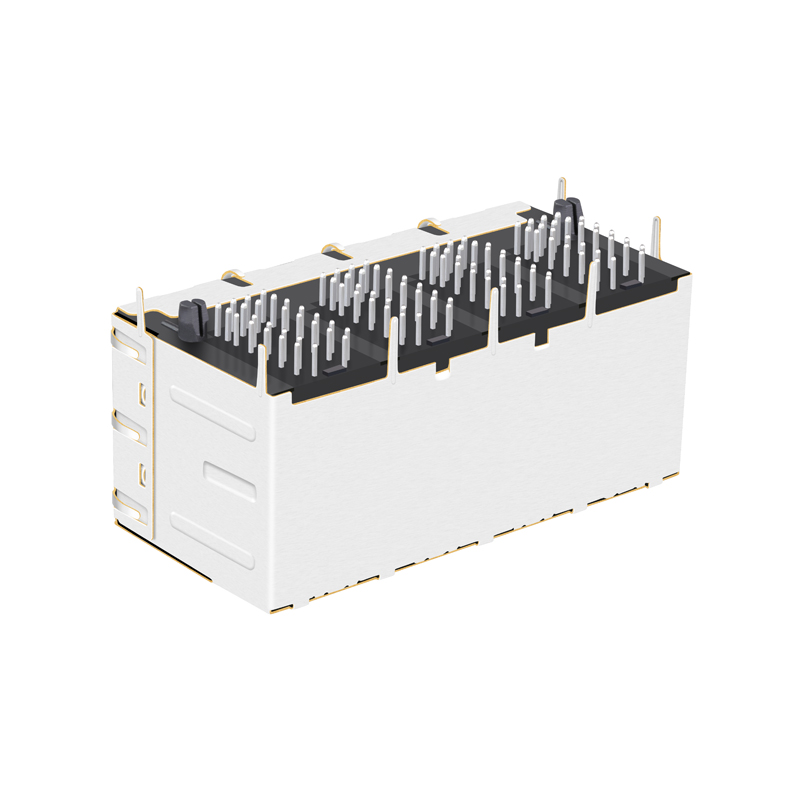

Details View 6

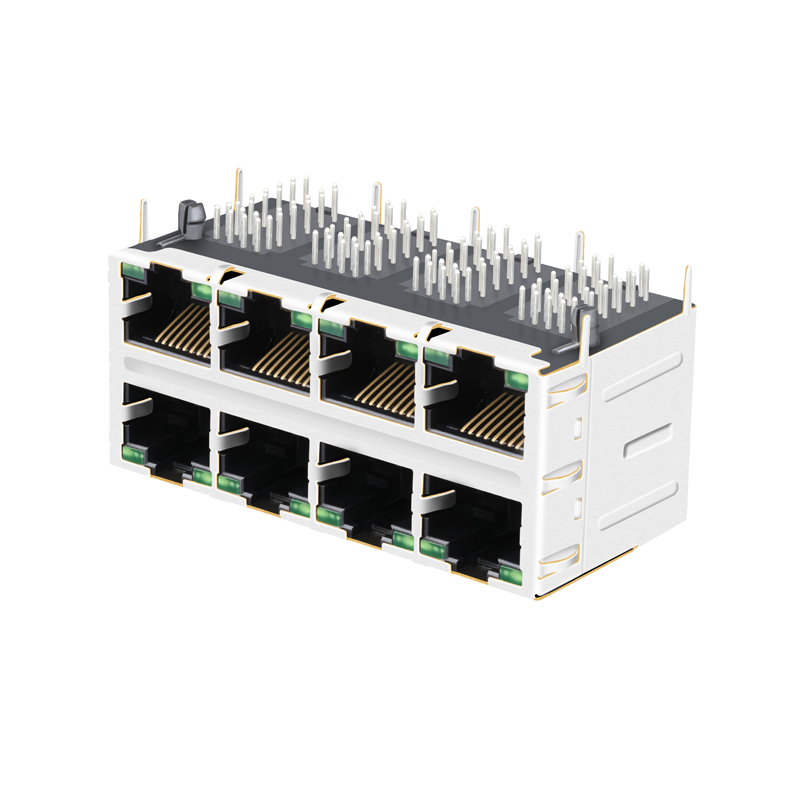

Details View 7

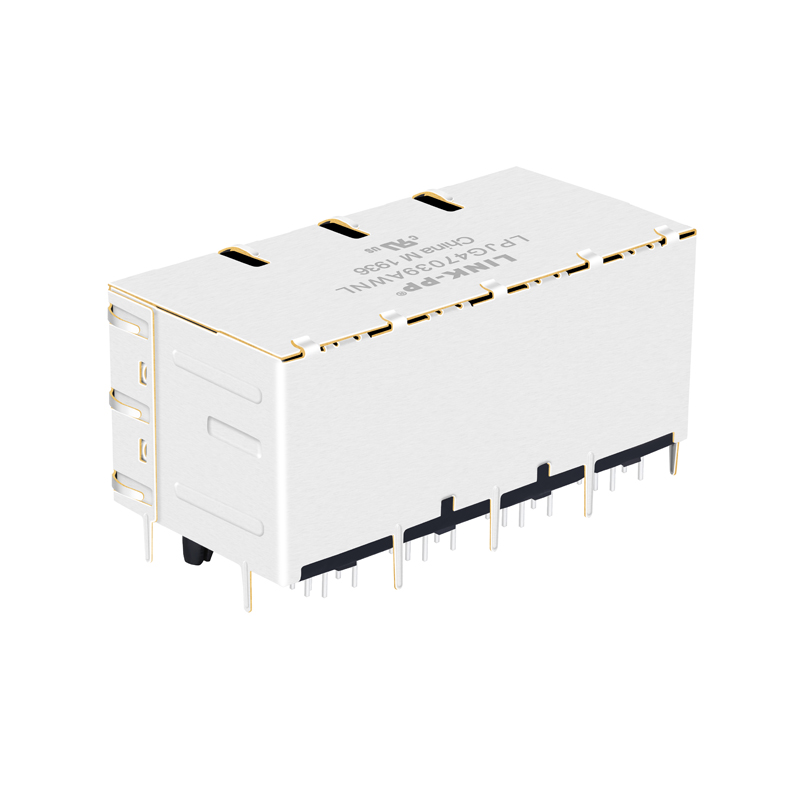

Details View 8
Details View 9
Quality Standards Diagram
Why Choose Us
Testing Equipment
Manufacturing Standards
Factory Operations
Quality Inspection
Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.

Main Products:
• 10/100/1000M LAN pulse transformer and filter
• RJ45 connector with 10/100/1000M magnetic
• T1/E1, T3/DS3/E3/STS-1 interface line transformer
• ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada and Japan.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher goals will convince you to be our long-term partner.

Production Line 1
Production Line 2
Workshop
Warehouse
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee will need to be covered.
What is your delivery time?
We are ready to ship immediately for stock items, and it takes 15-30 days for standard mass production orders.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can proceed with a detailed discussion regarding your custom requirements.
What is your advantage?
We have over 19 years of production experience and have been a trusted partner of global industry leaders for many years.
