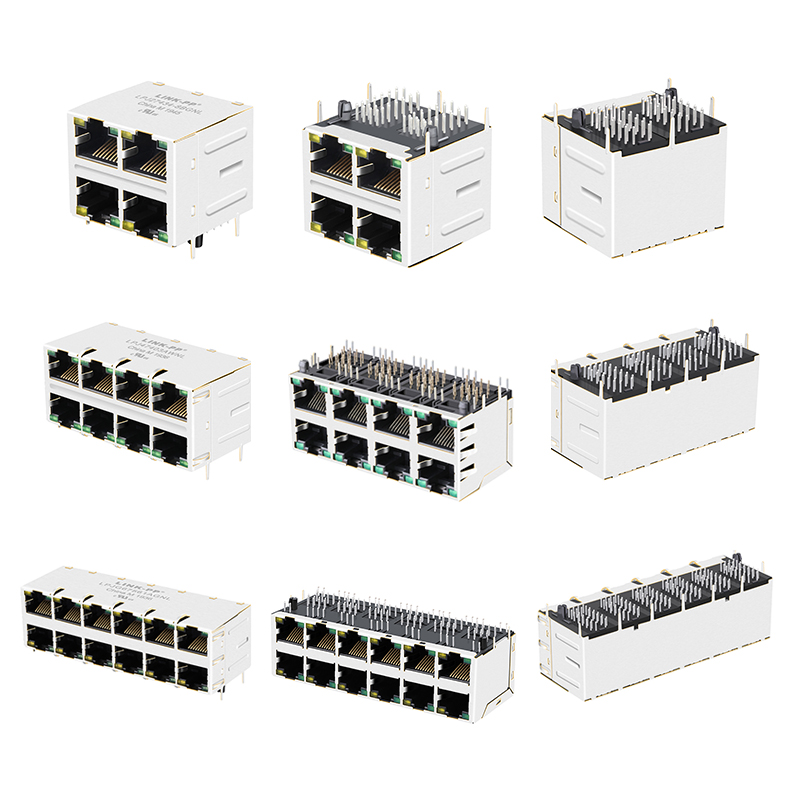

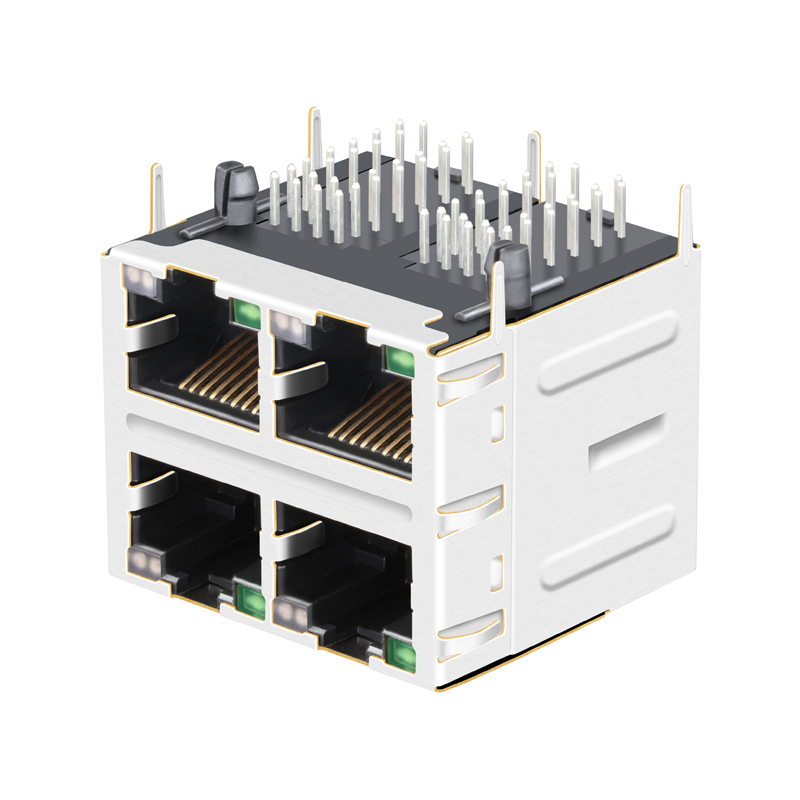

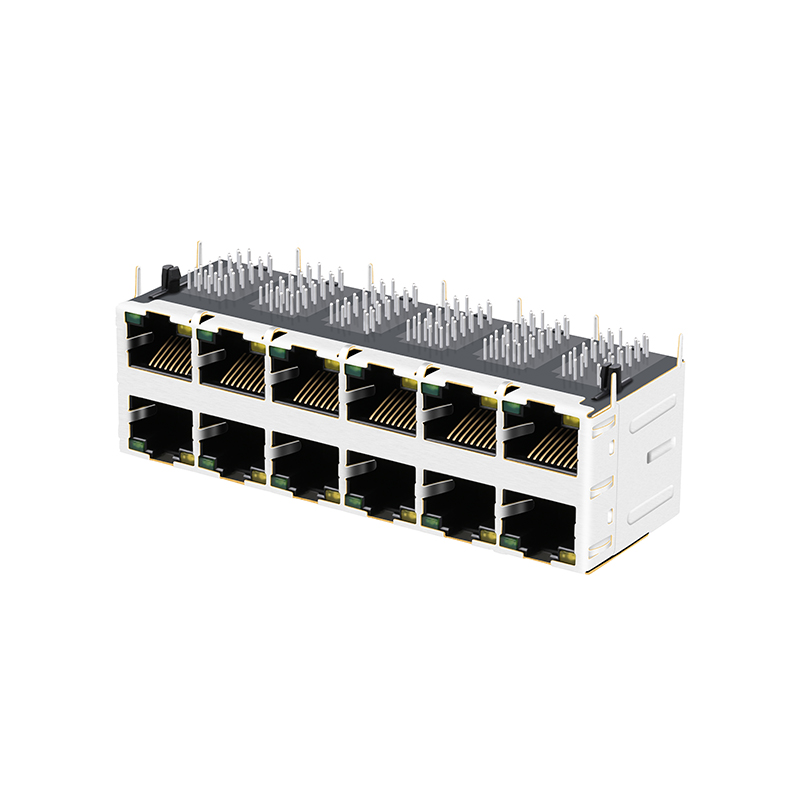

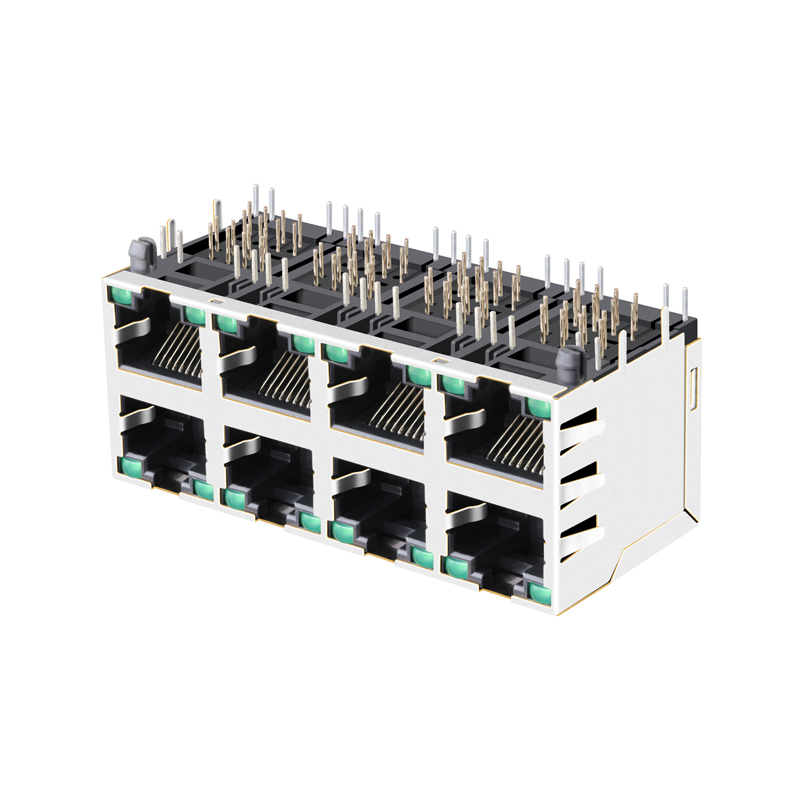

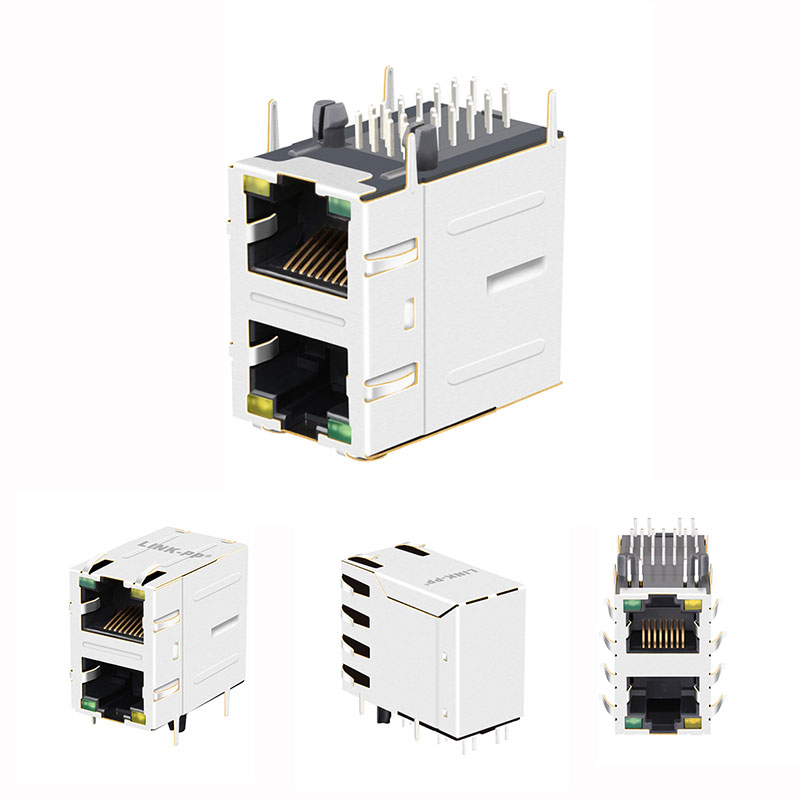

2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
1 / 5
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack

2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack

Send Inquiry

Product Description

Product Description
  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
  • Available in SMT, THT and THT with USB
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
  • HPLE products: Improved Common Mode Rejection due to additional NiZn cores

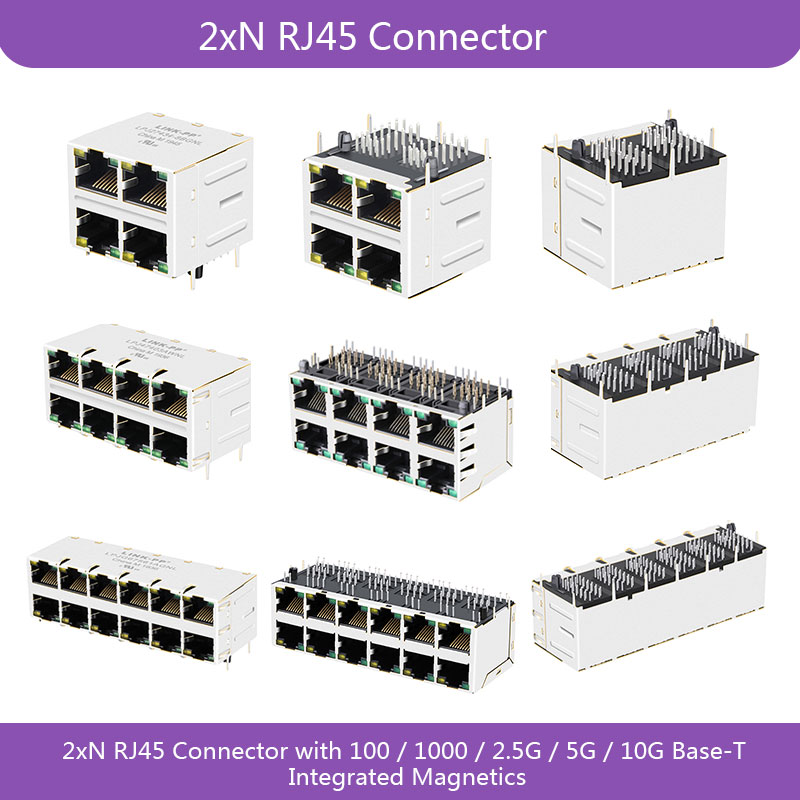

RJ45 Connector Characteristics
Specification
Item Value
Model Number RJ45 Filtered Connectors
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(PoE/Non_PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger
Number of Ports 2x1 2x2 2x4 2x6 2x8 Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C/-40°C ~ +85°C
Packing & Delivery
Package: Tray
Carton Size: 32*30*31cm
G.W./Carton: 8.5kg
Qty/Carton: 1200pcs
SPQ: 50pcs
N.W/pcs: 0.007kg
Packaging Details
Product Gallery & Production
Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6
Production Process Details
Frequently Asked Questions
Q1: What markets are your products exported to?
Our products are distributed globally, with key markets in North America (21.00%), South America (17.00%), Southeast Asia (16.00%), Eastern Europe (16.00%), Africa (9.00%), Oceania (6.00%), Eastern Asia (3.00%), Mid East (3.00%), Western Europe (2.00%), South Asia (1.00%), Northern Europe (1.00%), and Central America (1.00%).
Q2: How can we guarantee product quality?
We always ensure a pre-production sample is approved before commencing mass production, followed by a strict final inspection process before shipment.
Q3: What range of products can I purchase from you?
You can purchase high-quality RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, standard RJ45 Connectors, and SFP modules.
Q4: What credentials and qualifications do your manufacturing processes hold?
We are a specialized manufacturer of RJ45 connectors and LAN transformers with extensive expertise. Our facility and products are fully certified by SGS, ISO9001, UL, REACH, and CE.
Q5: What standards do your RJ45 Filtered Connectors comply with?
Our connectors are fully compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt standards, ensuring seamless compatibility with high-performance networks.
Q6: What delivery terms and payment currencies do you accept?
We accept delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES. Supported payment currencies include USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF via major payment methods.
