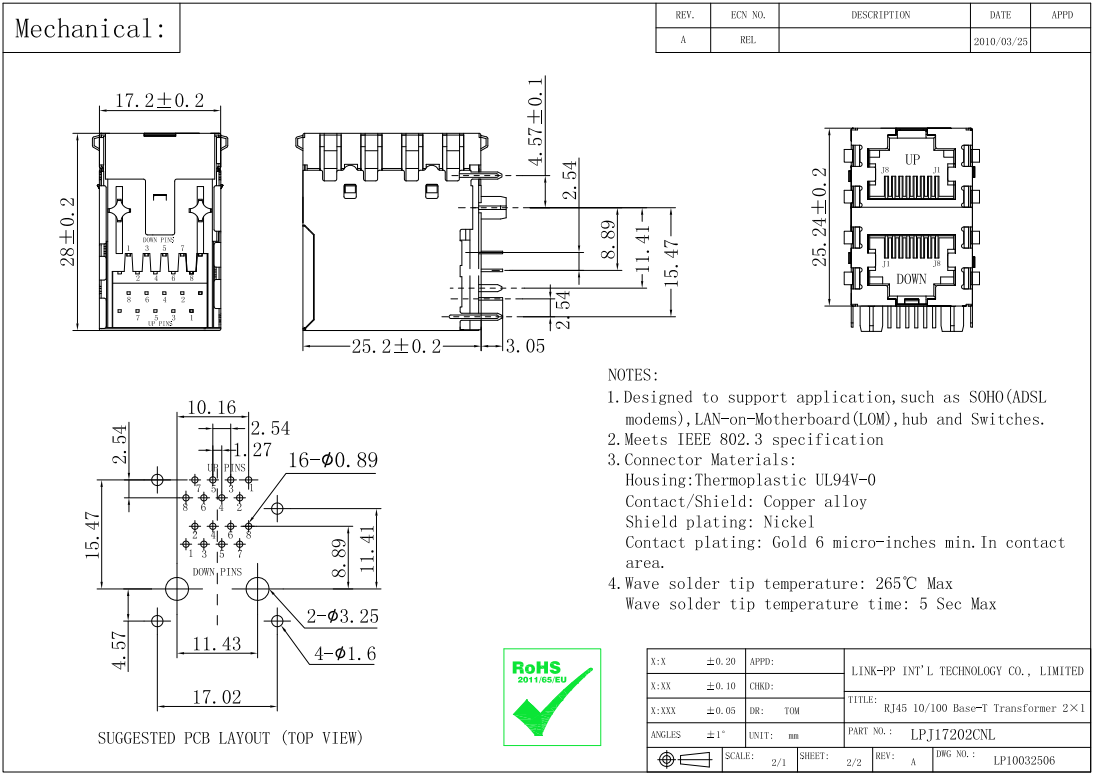

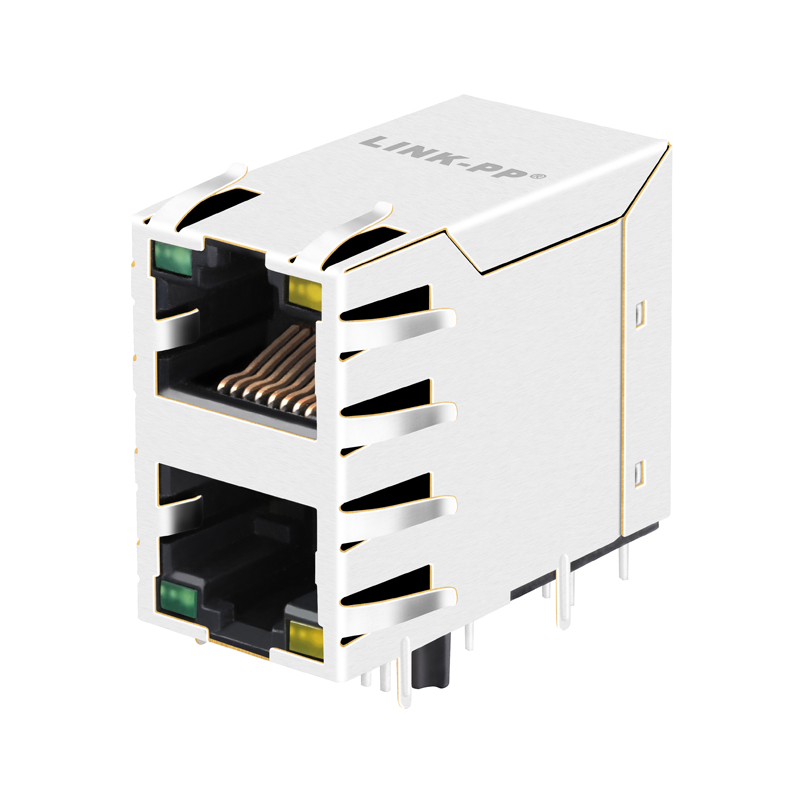

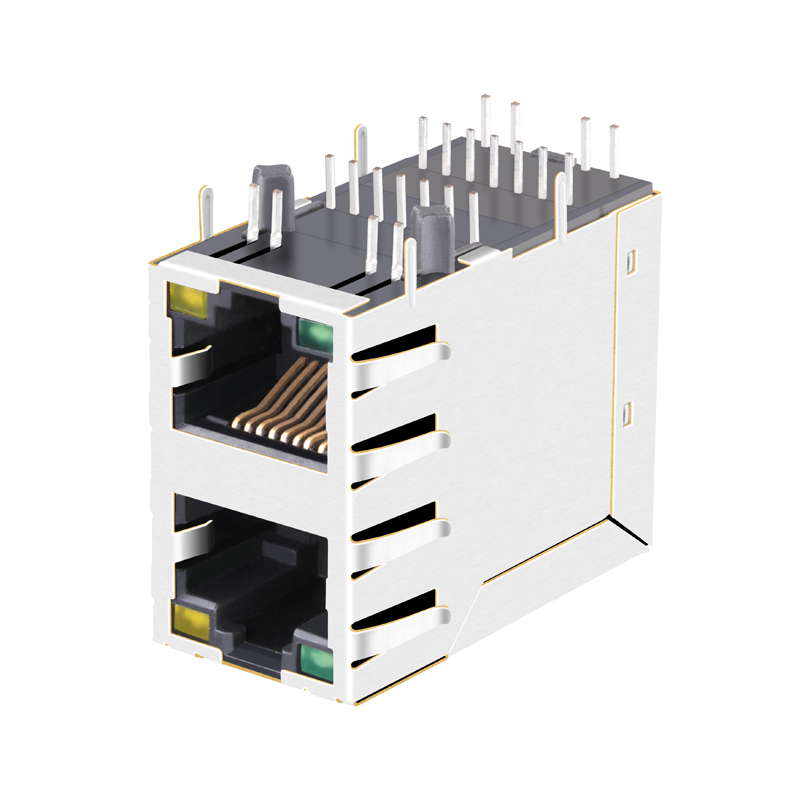

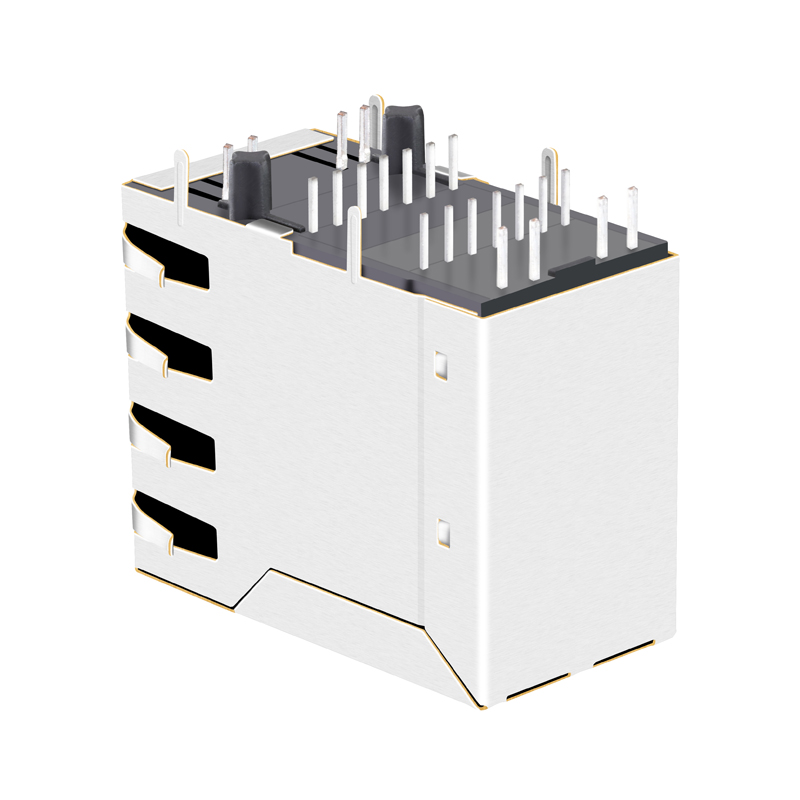

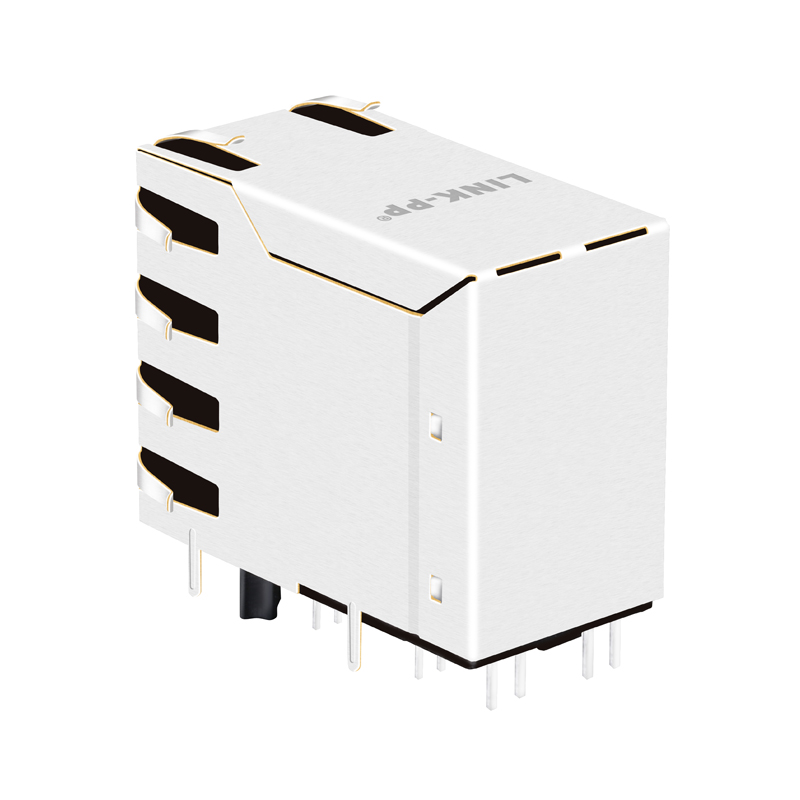

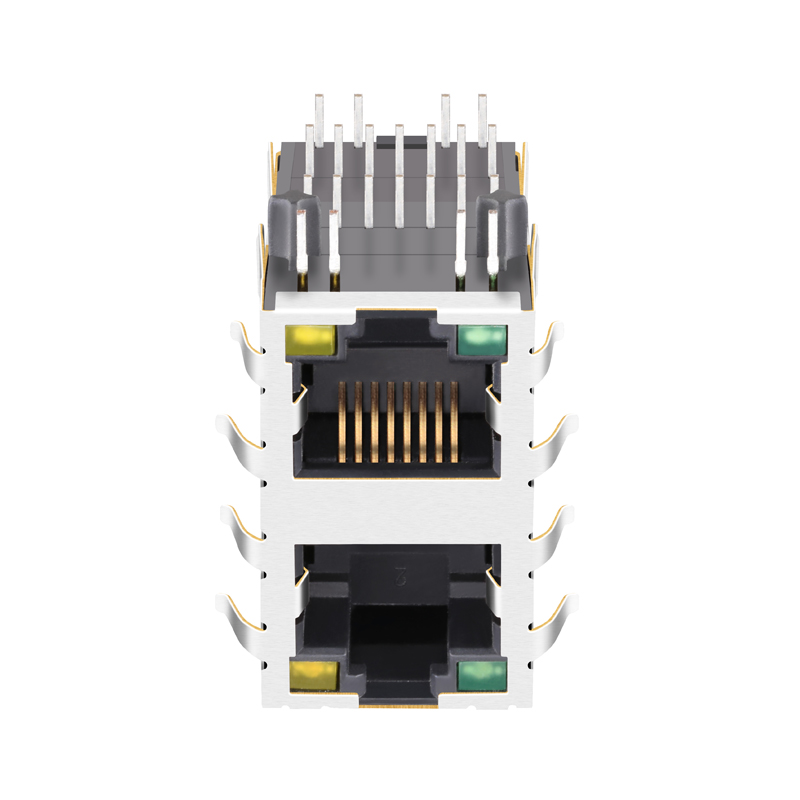

China Manufactures 2x1 Port Shielded RJ45 Modular Jack
| 2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics, Without LED, Tab Down/Up, RoHS |
| Part Number |
LPJ17202CNL |
| Cross Part Number |
MIC24A10-0101W-LF3 / 7499051002 |
| Application-Lan |
ETHERNET(NoN PoE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores per Port |
NO |
| Diodes |
NO DIODES |
| LED Option |
Without |
| Latch |
TAB DOWN / Up |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
With |
| Speed |
10/100 Base-T |
| Temperature |
-40 TO 85℃ |
| Turns Ratio RX |
1CT:1CT |
| Turns Ratio TX |
1CT:1CT |
Why Choose Us
World’s Leading Supplier Of Integrated RJ45 Connectors And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
Competitive Price And Service
- More competitive pricing compared to major industry brands
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL, UPS, FEDEX, Or TNT
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
Frequently Asked Questions
What are the main features of the 2x1 Port Shielded RJ45 Modular Jack?
This connector is a 2x1 port RJ45 modular jack supporting 10/100 Base-T transmission speed with integrated magnetics. It is designed without LEDs, features tab down/up latch options, side entry PCB mounting, and is fully RoHS compliant.
What is the operating temperature range for this modular jack?
The connector is designed to operate reliably in harsh environments, featuring a wide operating temperature range from -40°C to 85°C.
Does this RJ45 connector support PoE (Power over Ethernet)?
No, this specific model is designed for standard Ethernet applications without PoE (Non-PoE).
Are the products certified for international use?
Yes, they are manufactured under strict control standards and possess professional certifications including ISO 9001:2008, UL certification, Reach certification, and RoHS compliance.
Can I get samples before placing a bulk order?
Yes, free samples are available for quality evaluation and testing. Please contact our support team to request samples based on your project requirements.
What is the quality assurance policy for these products?
All modular jacks undergo 100% component testing (not just batch testing) and come with a comprehensive 6-year quality guarantee.
