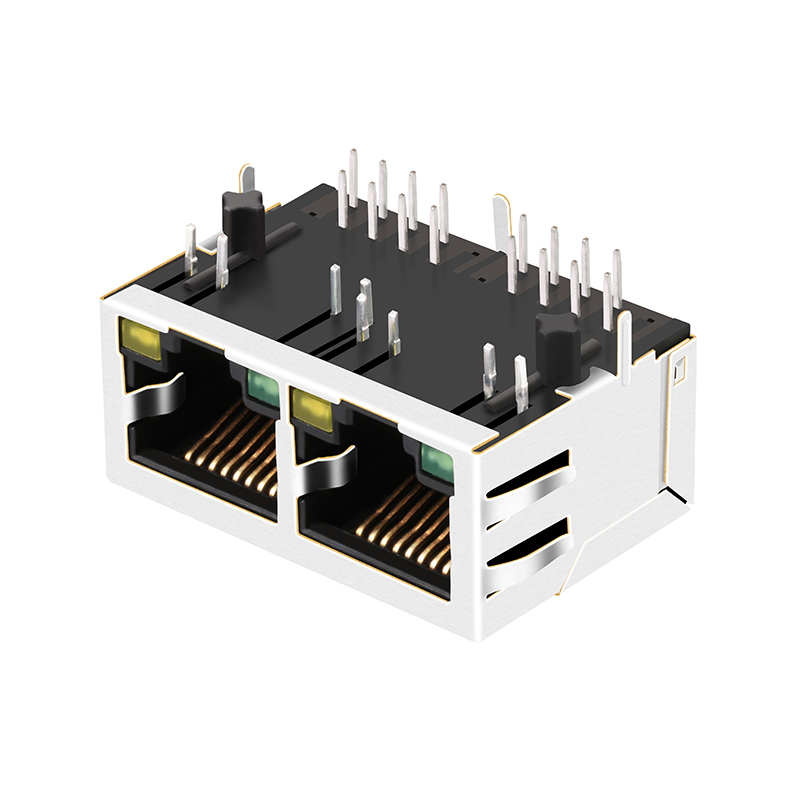

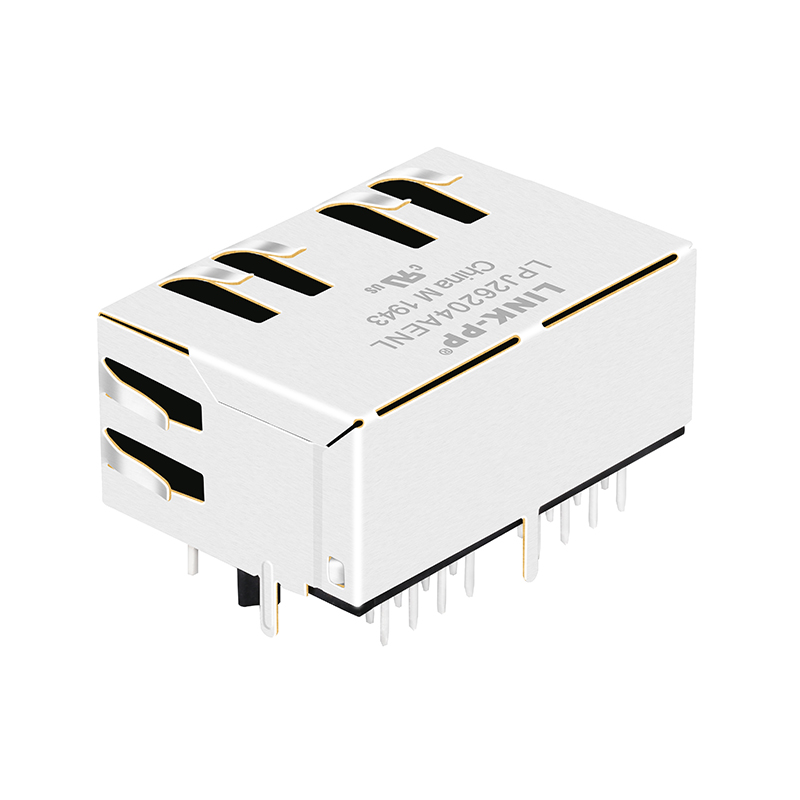

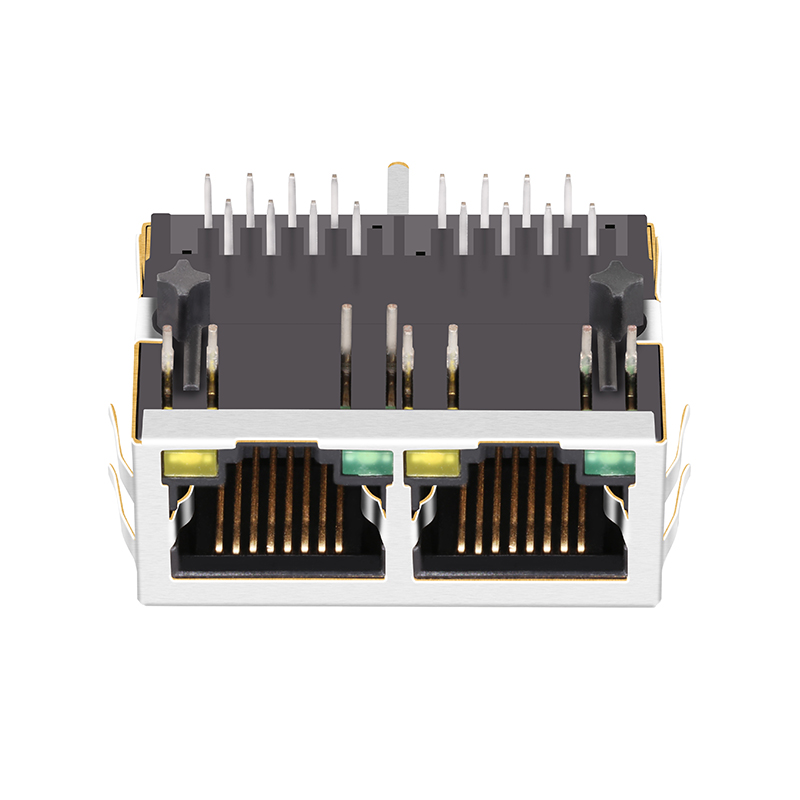

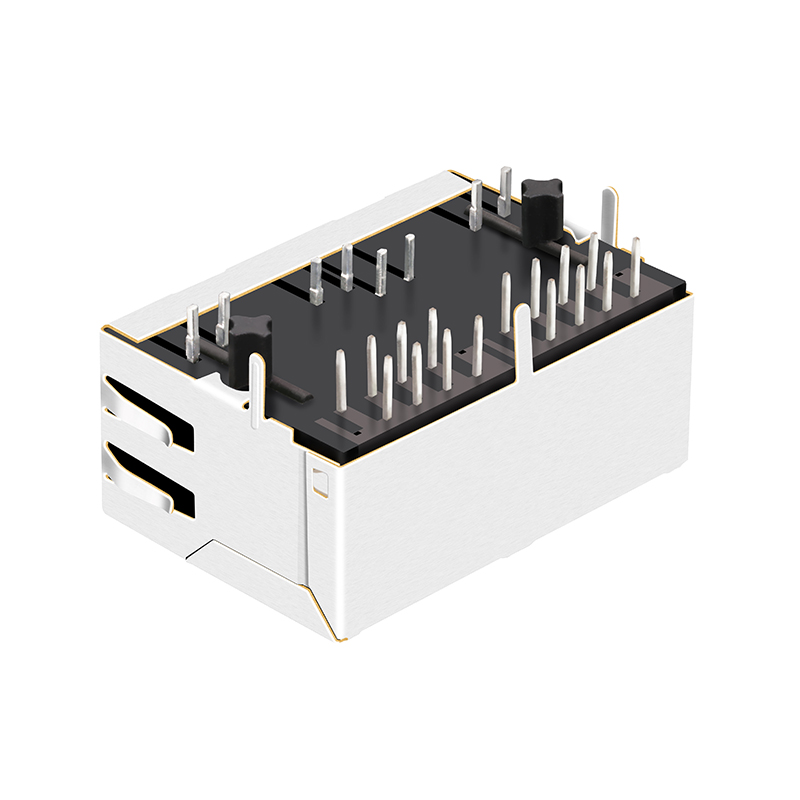

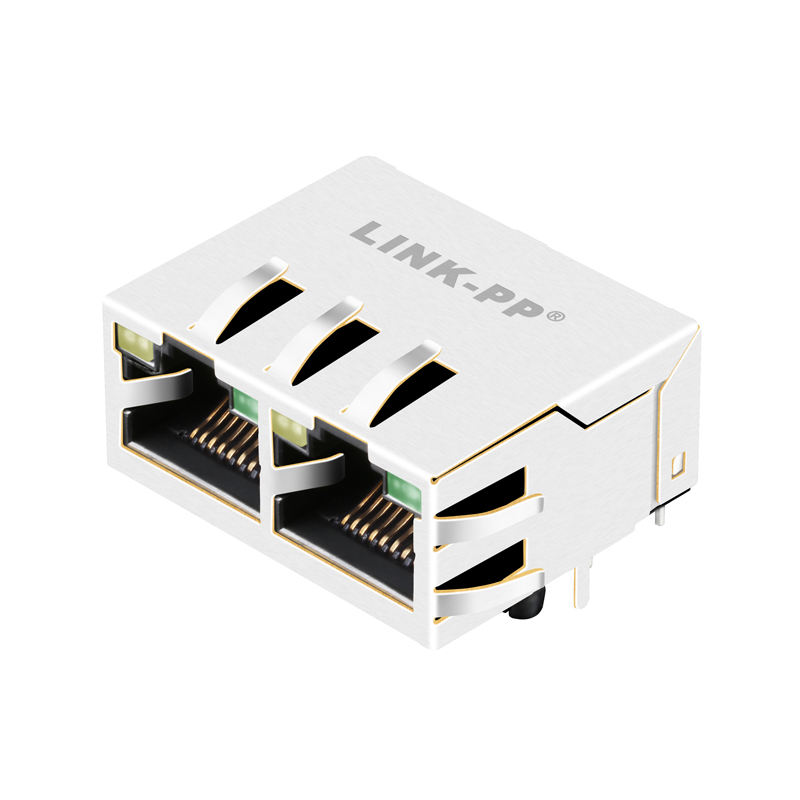

Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
1 / 5
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors

Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors

Send Inquiry

Product Description

Ethernet Connectors
Industrial Tab Up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Products Description
Item RJ45 Female Connector
Part Number LPJG25465ADNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x2 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Yellow/Green
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Connector Details
💡 Product Range Overview
Low Profile and SMT Connectors
Product Specifications
Product Dimensions
Technical Drawing
Pin Configurations
Circuit Diagram
PCB Layout
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Production Line
Testing Equipment
Quality Control
Certifications
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs will apply.
3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
4. What after-service can you offer?
A one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
Over 19 years of production experience and partnership with industry leaders for many years.
