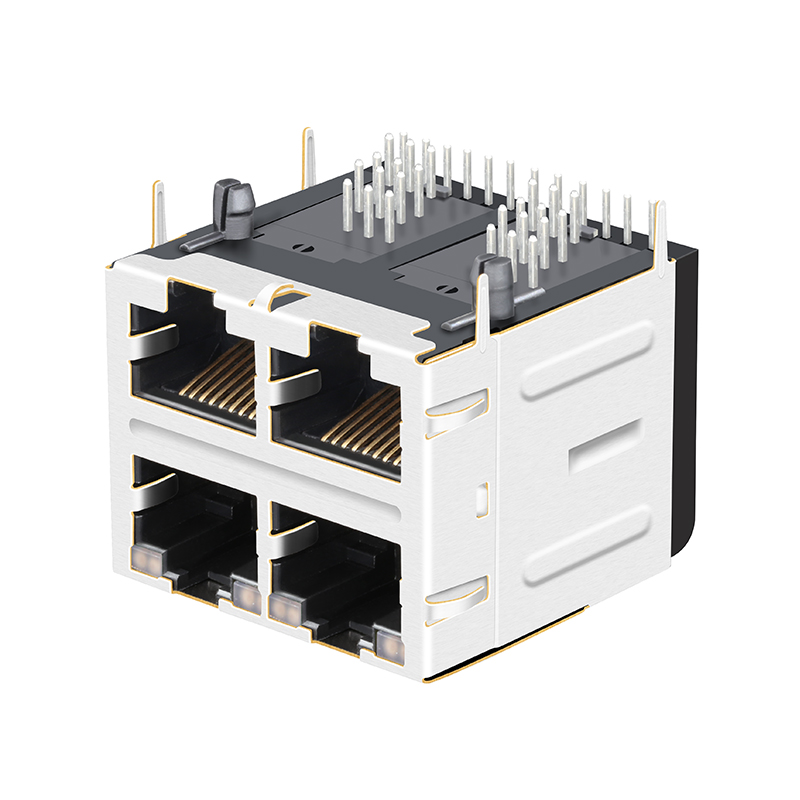

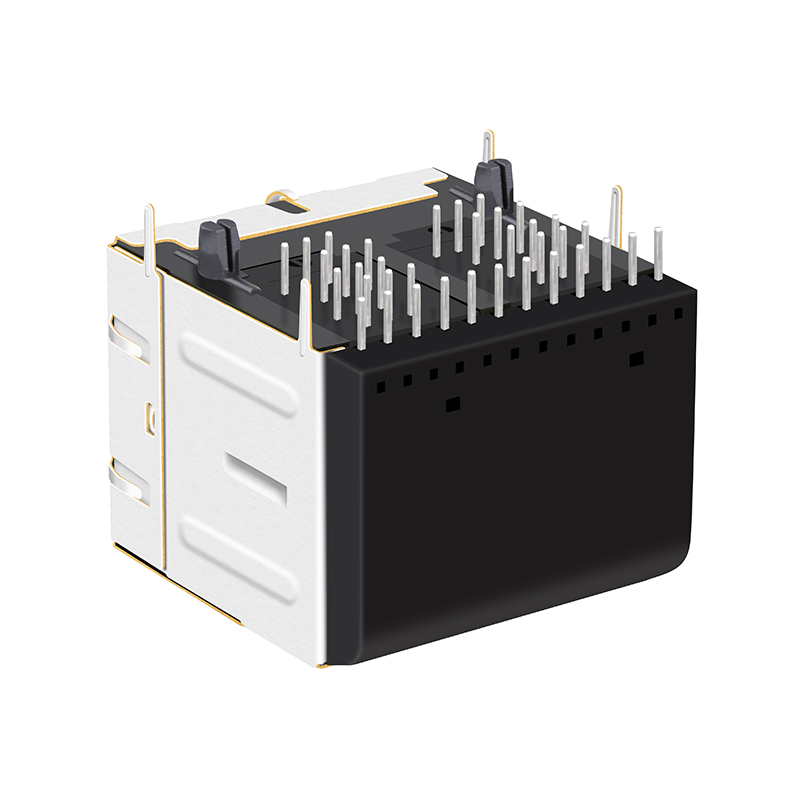

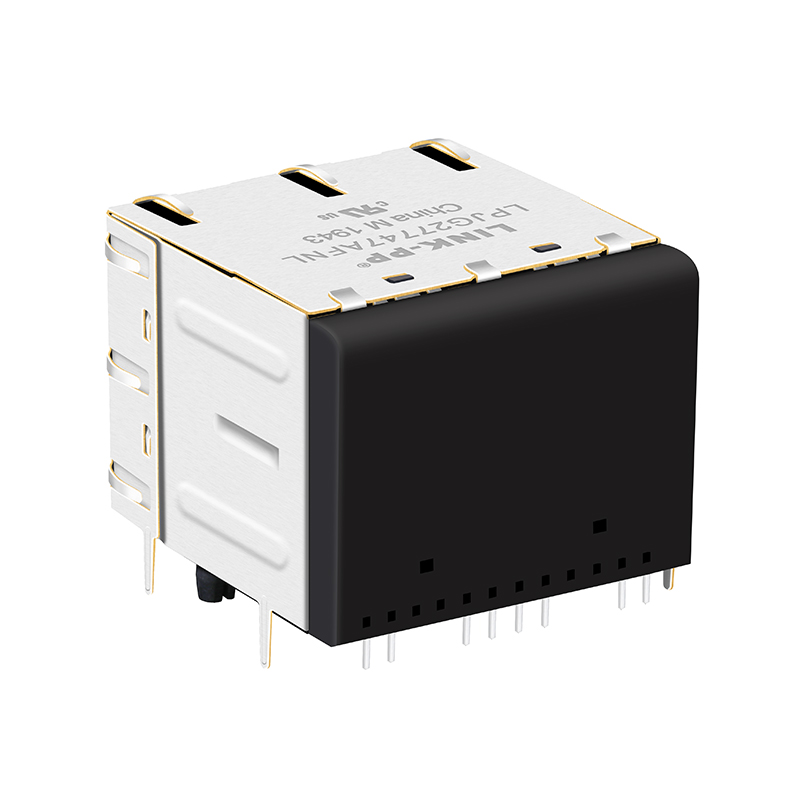

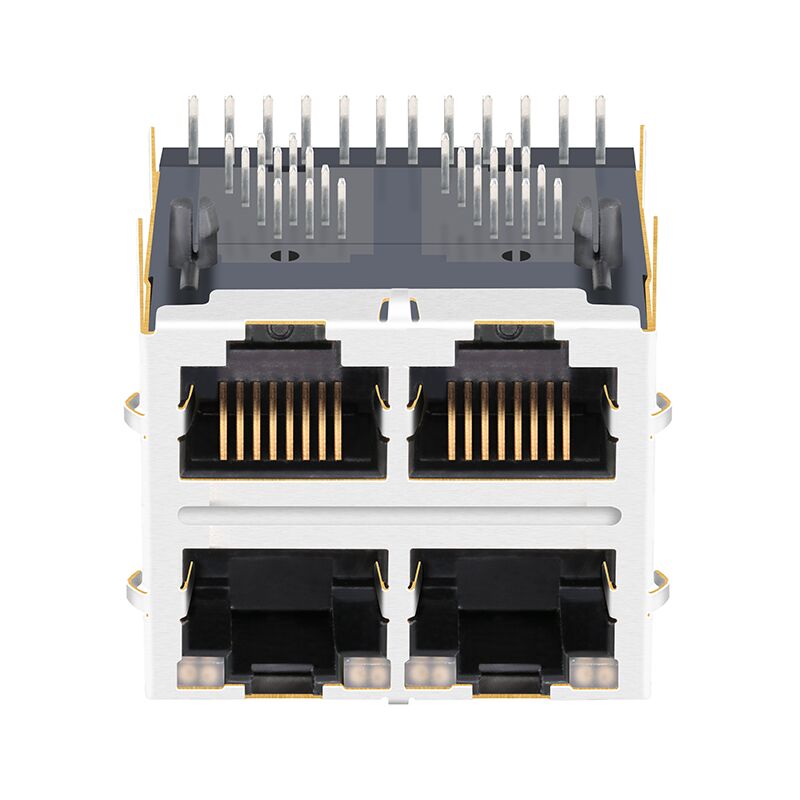

JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
1 / 5
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks

JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks

Send Inquiry

Product Description

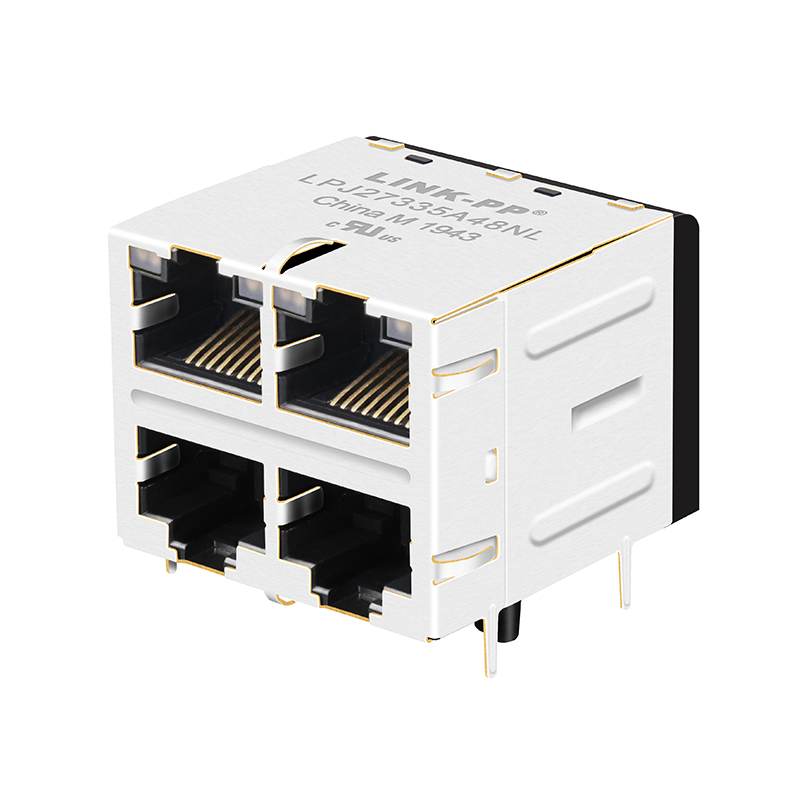

Product View 1
Product View 2
Specification
Item Value
Part Number LPJ27335A48NL
Cross Part Number JX20-0252NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green&Orange/Green&Orange Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 2x2 Port
Features Board Guide
Tab Direction Both
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Details 1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7
Details 8
Details 9
Manufacturing Capabilities
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. The facility owns advanced manufacturing systems and test equipment imported from abroad. Established in 1997, with around 2000 staff members and an abundant monthly production capacity of 3000K, delivery of goods is guaranteed within a short timeframe. Moreover, professional complete solutions for magnetic components and strong technical support are provided. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.
10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
T1/E1, T3/DS3/E3/STS-1 interface line transformer
ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Frequently Asked Questions
Are you a manufacturer or trade company?
We are a manufacturer specialized in RJ45 connectors and LAN Transformers with over 23 years of experience.
Can I get some samples?
Yes, 3-5 pcs of free samples are available for testing. Small batch orders are also acceptable.
Is OEM service available?
Yes. We have rich experience and the capabilities to turn your designs and ideas into real products, including custom laser printing on the products.
How about the lead time?
With our professional team and high-quality production, products are typically shipped within 30 days.
What certifications do your components comply with?
Our magnetic telecom and networking components are certified and comply with ISO9001:2000, RoHS, REACH, CE, and UL standards.
What is the operating temperature range for these RJ45 connectors?
The operating temperature range for these RJ45 connectors is designed to withstand temperatures between -40°C and 85°C.
