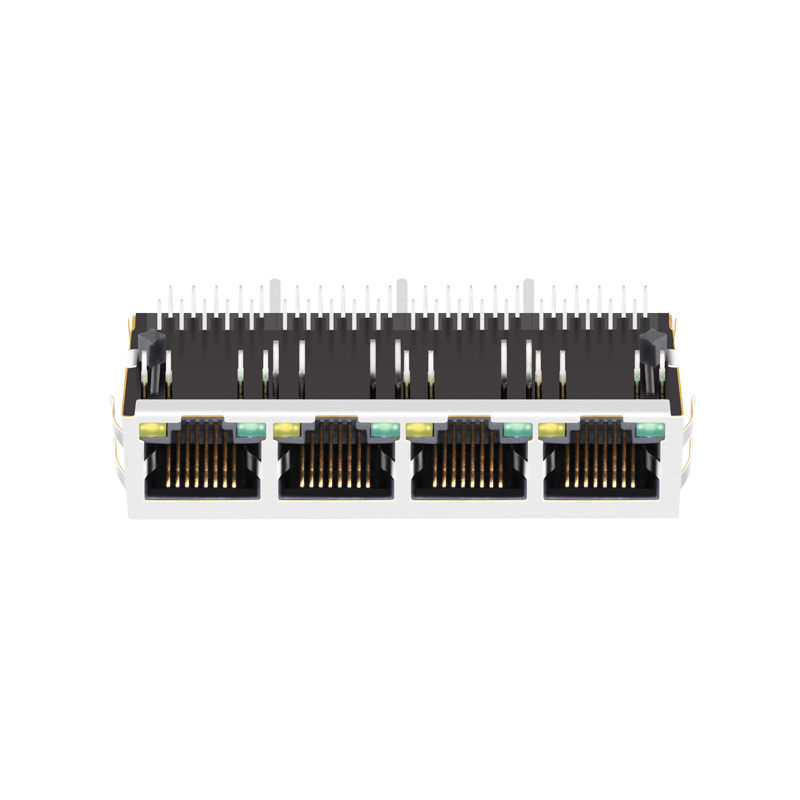

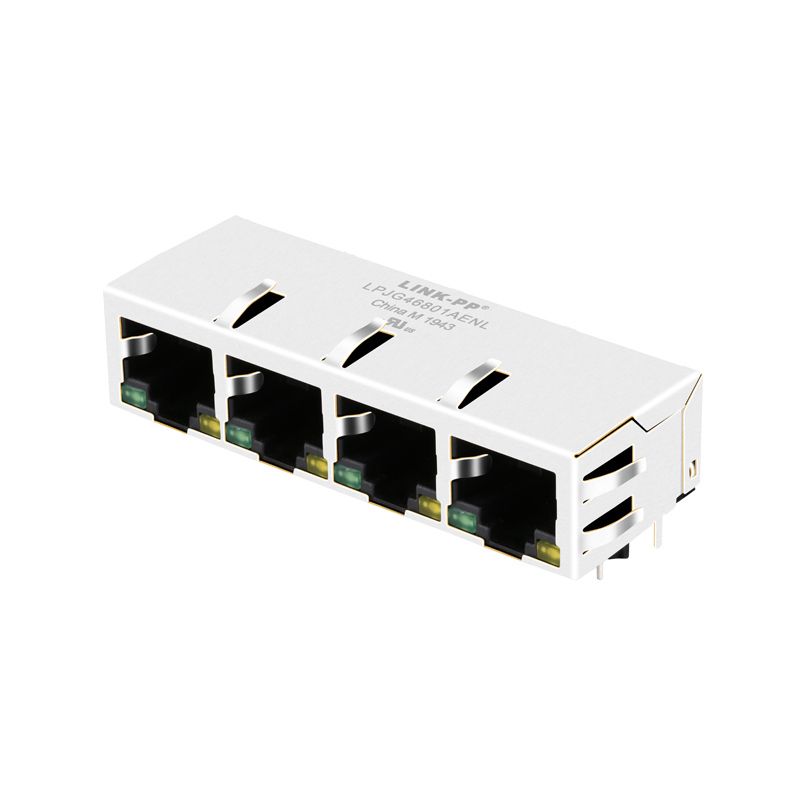

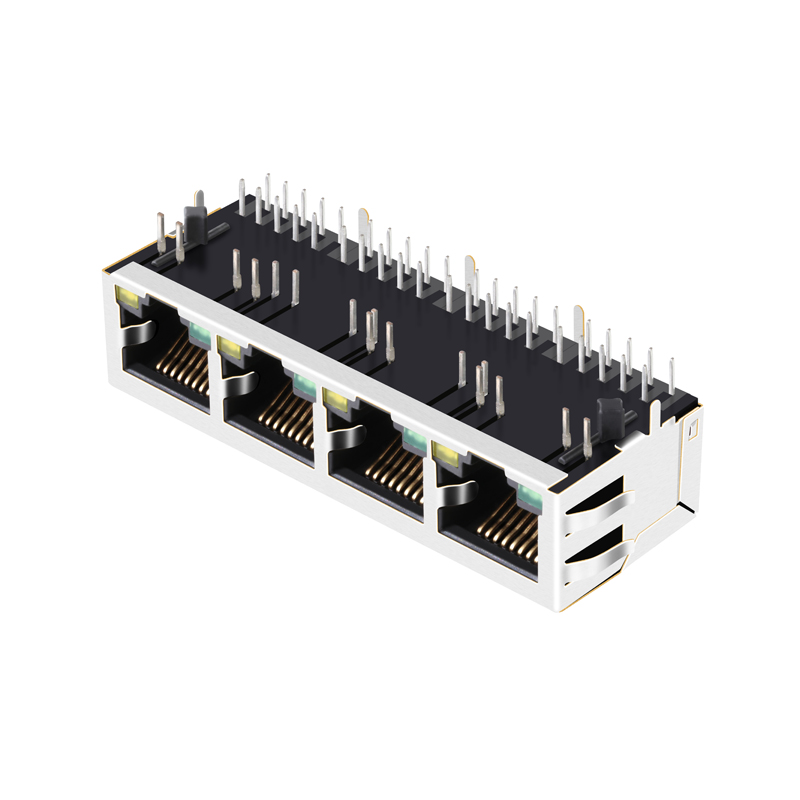

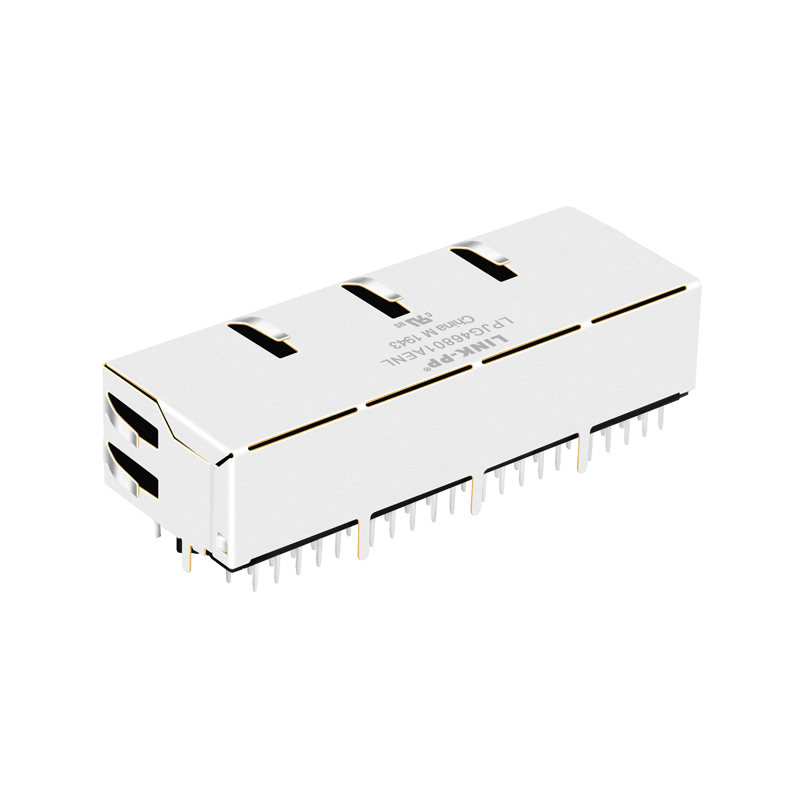

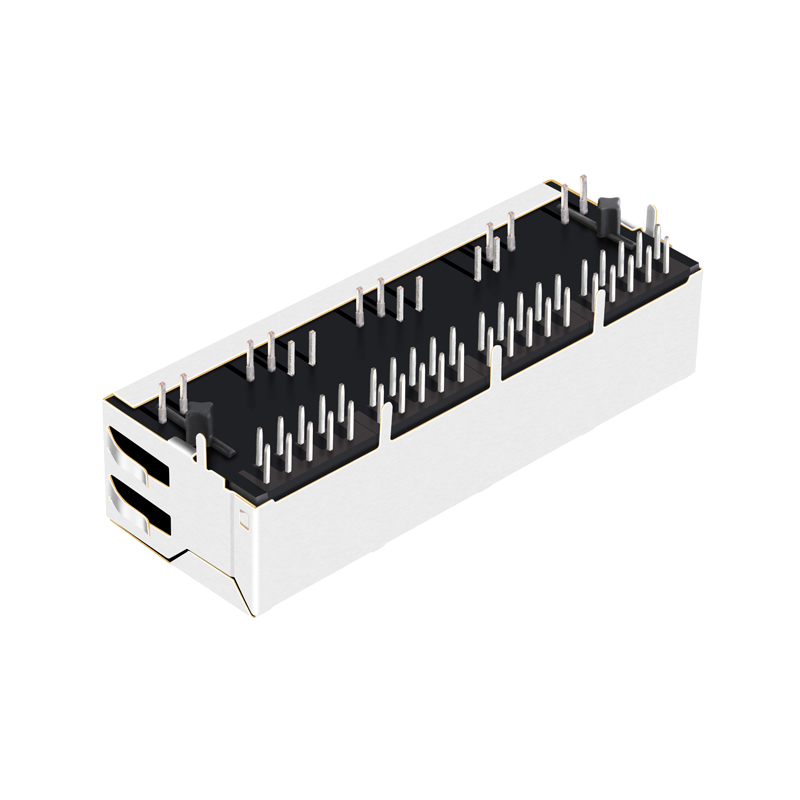

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
1 / 5
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

Send Inquiry

Product Description

Product Description
Product View 1
Product View 2
Specification
Parameter Value
Model Number LPJG46801AENL
Part Status Active
Connector Type RJ45
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Number of Ports 1X4 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Packing & Delivery
The Part Number package: 20 pcs in 1 tray, 20 tray in 1 carton, which is 37*30*30cm, 10KGS (400pcs) of each carton.
Packaging Details
100 / 1000 / 2.5G / 5G / 10G Base-T 1xN RJ45 Connector
✓ Applications: Suitable for industrial temperatures from –40 °C up to +85 °C
✓ Compatible to Industrial Ethernet systems like EtherCAT or Profinet
✓ Compliant with most IC’s for Ethernet applications such as Microchip, Broadcom, Marvell
✓ Ideal for Hubs, Routers, Switches, IP cameras, and IoT applications
Application Image 1
Application Image 2
Application Image 3
Application Image 4
Application Image 5
Application Image 6
Frequently Asked Questions
What types of products are available in your range?
We offer a wide selection of networking components, including RJ45 Magnetic connectors, LAN transformers, Modular Jacks, and RJ11 Connectors.
How is the product quality guaranteed?
We ensure strict quality control by always providing a pre-production sample before starting mass production, followed by a final inspection before shipment.
What are the primary applications for these RJ45 connectors?
These connectors are highly compatible with Industrial Ethernet systems such as EtherCAT or Profinet, and widely used in networking devices including Hubs, Routers, Switches, IP cameras, and IoT applications.
What are the operating temperature ranges for these components?
The standard operating temperature is 0°C to 70°C, and we also provide options suitable for demanding industrial applications handling temperatures from -40°C up to +85°C.
What delivery terms and payment currencies do you accept?
We accept various delivery terms (including FOB, CFR, CIF, EXW, DDP, DDU, and Express Delivery) and transactions in multiple currencies (including USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF).
What methods of payment are supported?
We support multiple payment options including T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.
