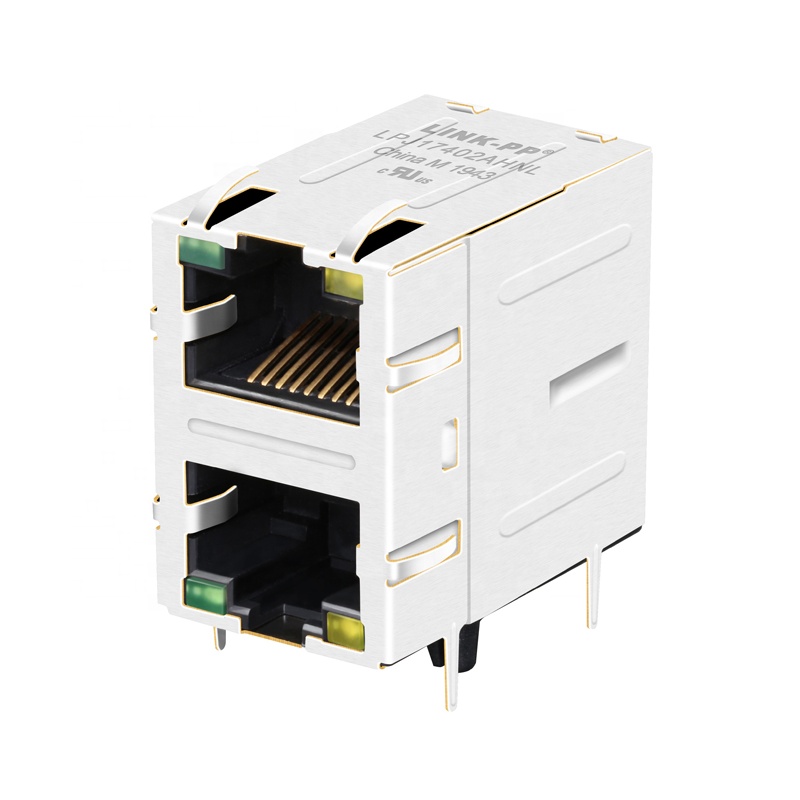

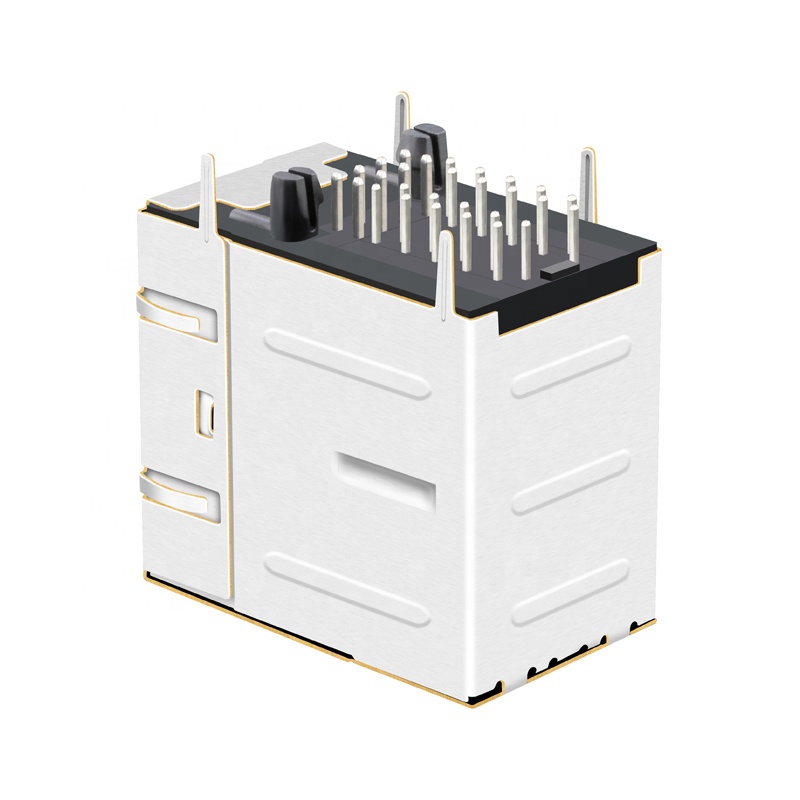

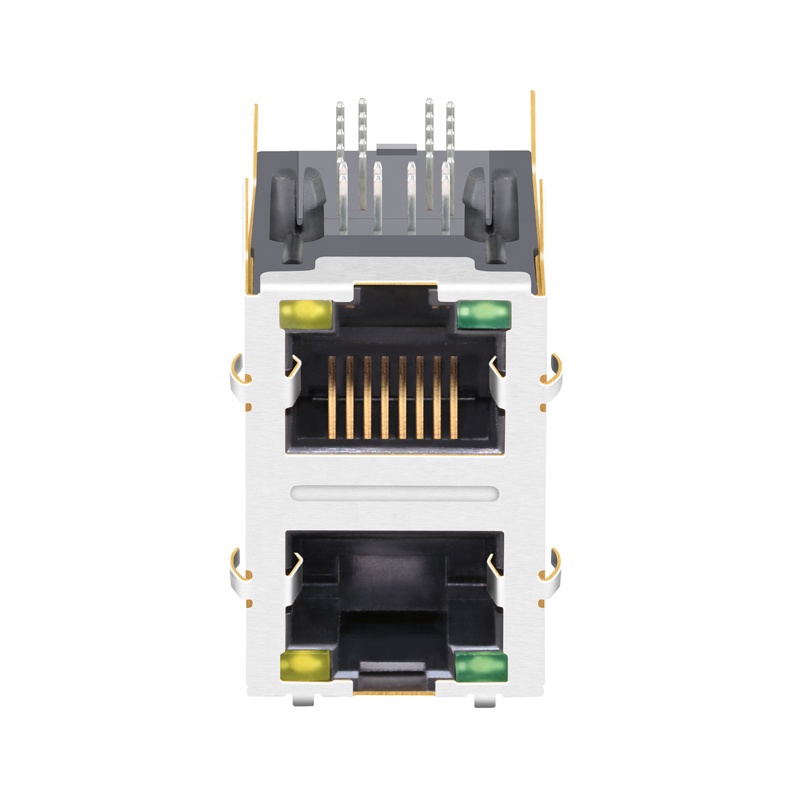

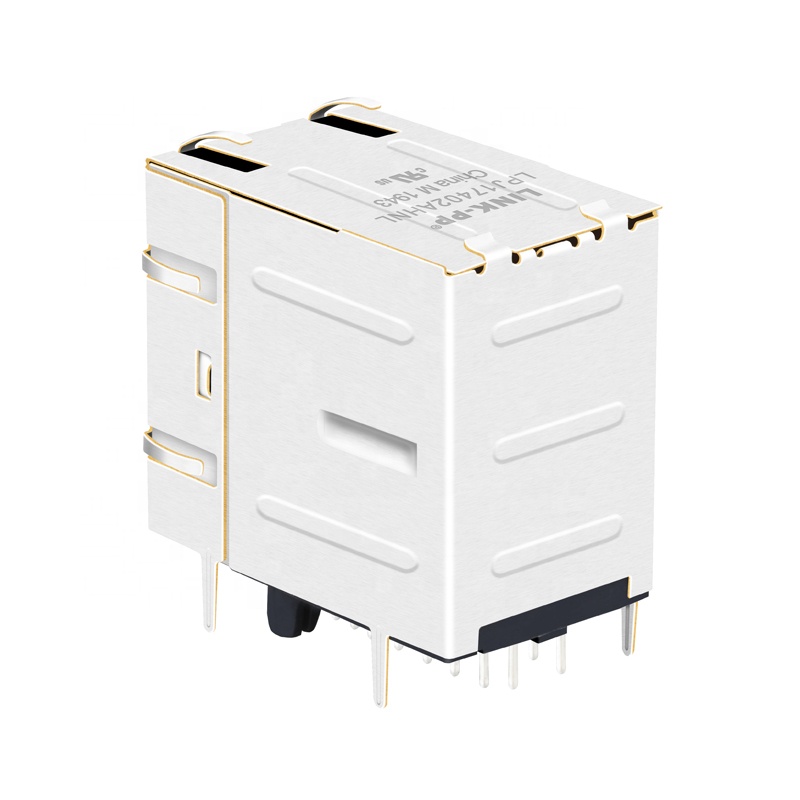

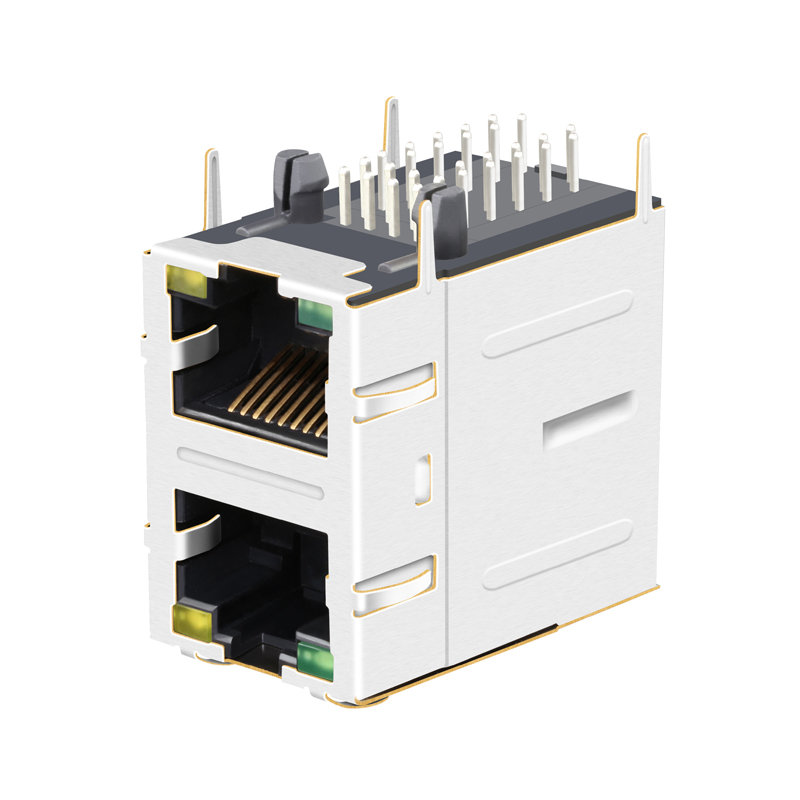

| Item | RJ45 Female Connector |
| Part Number | LPJ17402AHNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x1 Port |
| Speed | 10/100 Base-T |
| Latch | Down |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. Our facility owns advanced manufacturing and testing equipment imported from abroad. Established in 1997, we have around 2,000 staff at present. With an abundant production capacity of 3,000K per month, we ensure short delivery times. Moreover, we provide professional, complete solutions for magnetic components along with strong technical support.
Main Products:
10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We export to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Main Customers:
ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for unique customer requirements. We trust that our strength in the field and commitment to excellence will foster long-term partnerships.
