0811-2X6R-19-F DU6T201A1 J20-0015NL 100 Base-T 2X6 Port RJ45 Jack Socket Connector

Product Description

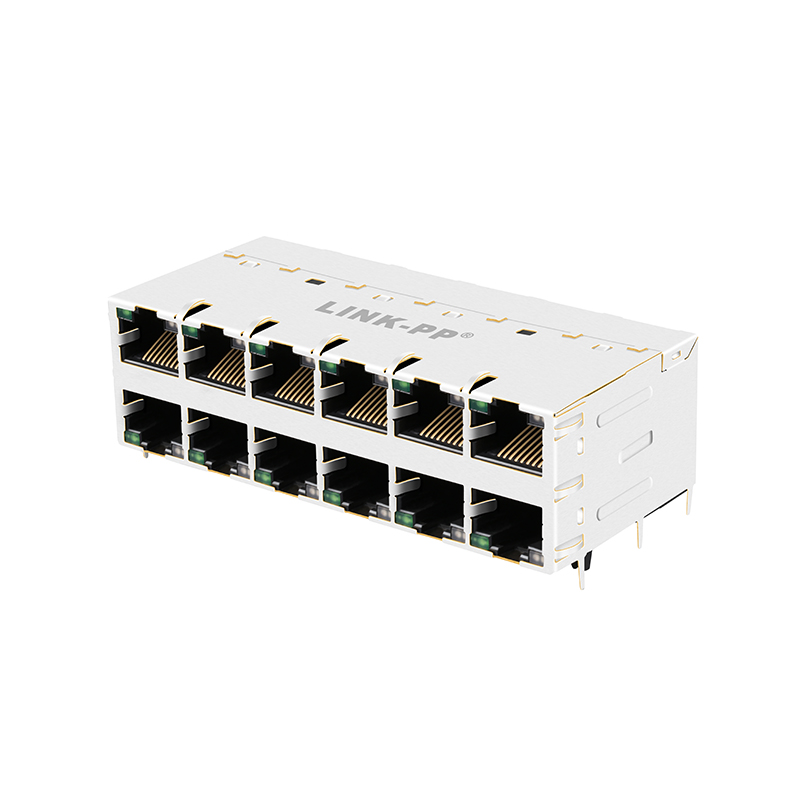

RJ45 Jack Socket Connector Front View

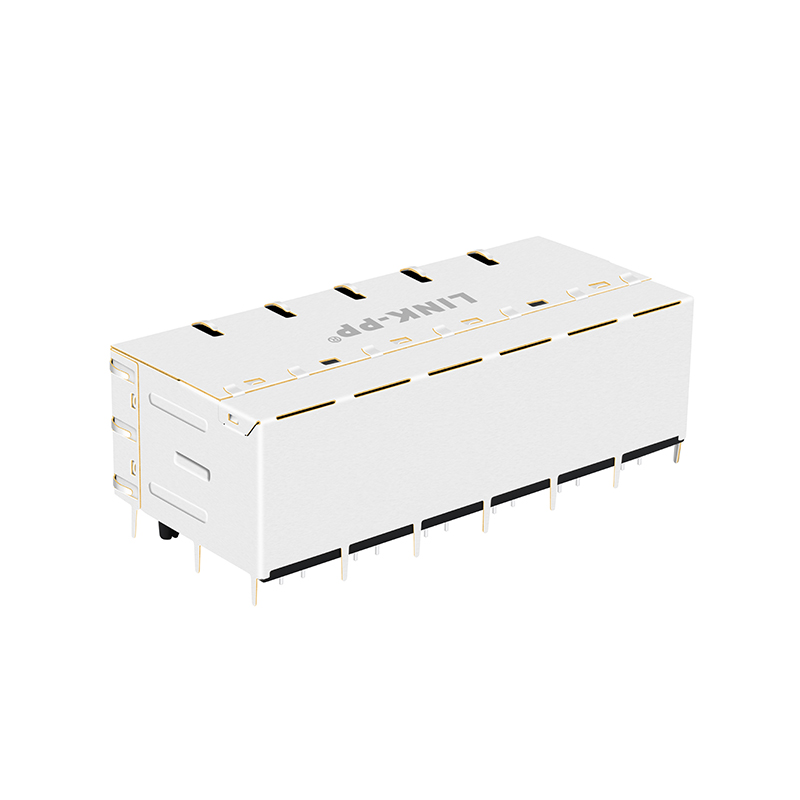

RJ45 Jack Socket Connector Side View
0811-2X6R-19-F DU6T201A1 J20-0015NL 100 Base-T 2X6 Port RJ45 Jack Socket Connector
Products Description
Item RJ45 Female Connector
Part Number LPJ67312A43NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x6 Port
Speed 10/100 Base-T
Latch Up/Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Dimensions
Lan Transformer Structure
Send Inquiry To Get Latest Price List
Product View 1
Product View 2

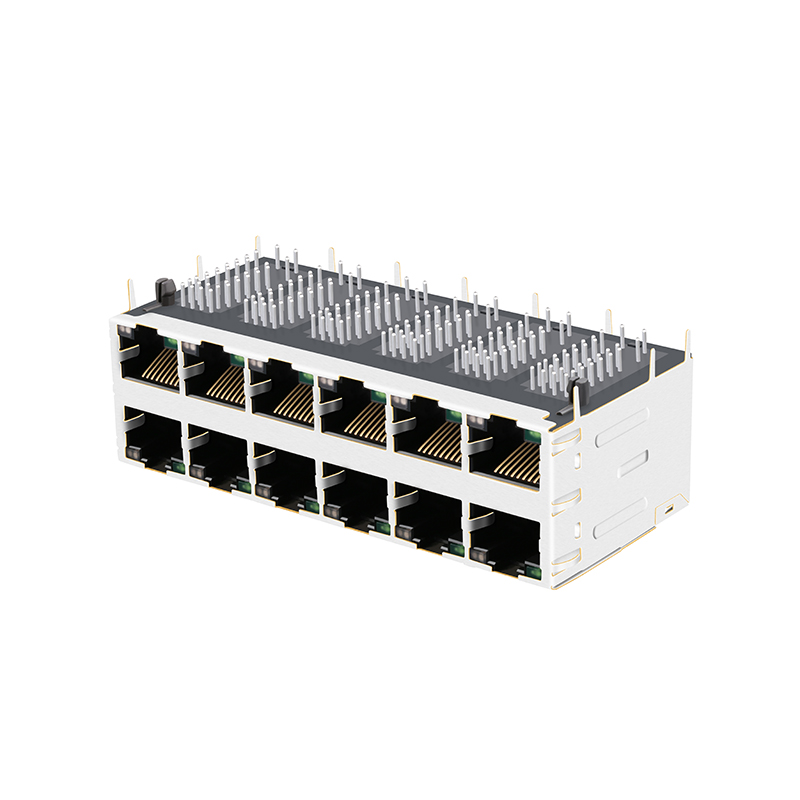

Product View 3

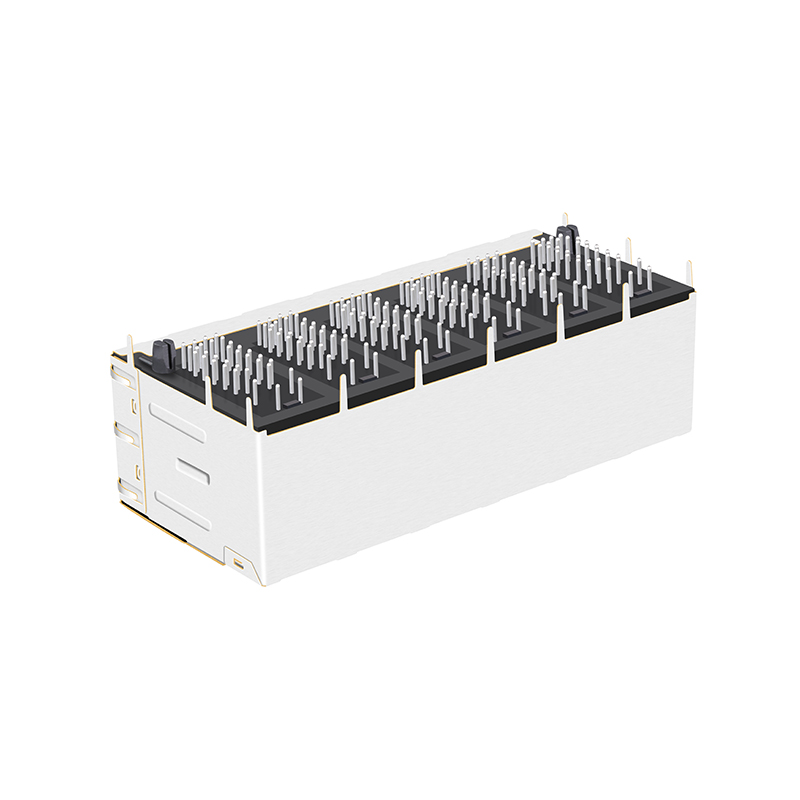

Product View 4

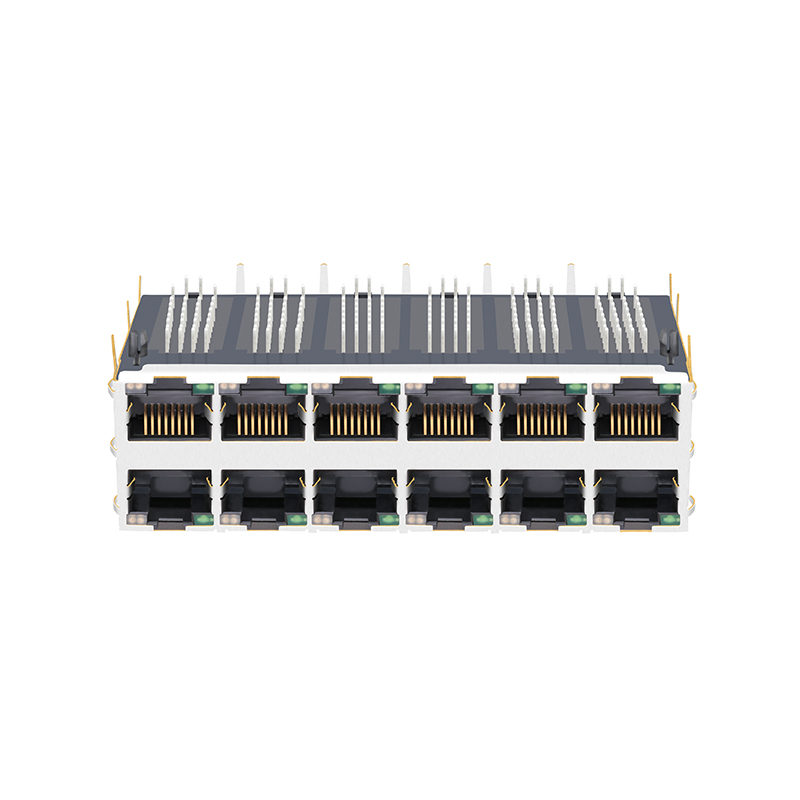

Product View 5
Product View 6
Product View 7
Quality Management
Why Choose Us
Certification 1
Certification 2
Certification 3
Certification 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions in the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our commitment to excellence will convince you to be our long-term partner.
Production Facility 1
Production Facility 2
Test Laboratory
Warehouse
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you should cover the shipping fee.
3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production orders.
4. What after-sales service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can proceed with a detailed discussion of your requirements.
6. What is your advantage?
We possess over 19 years of dedicated production experience and have been a trusted partner for major global brands for many years.
