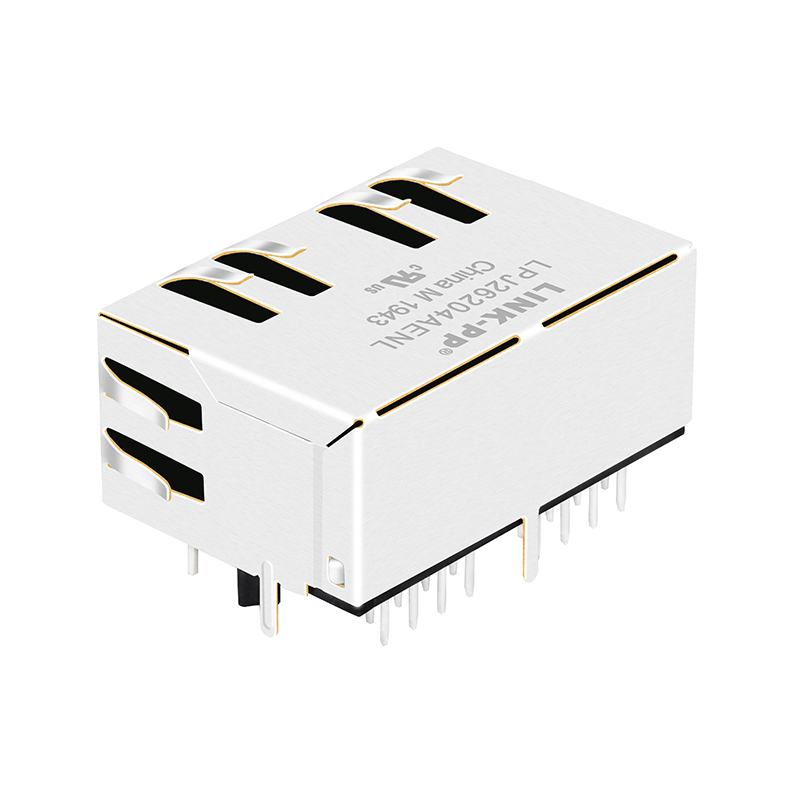

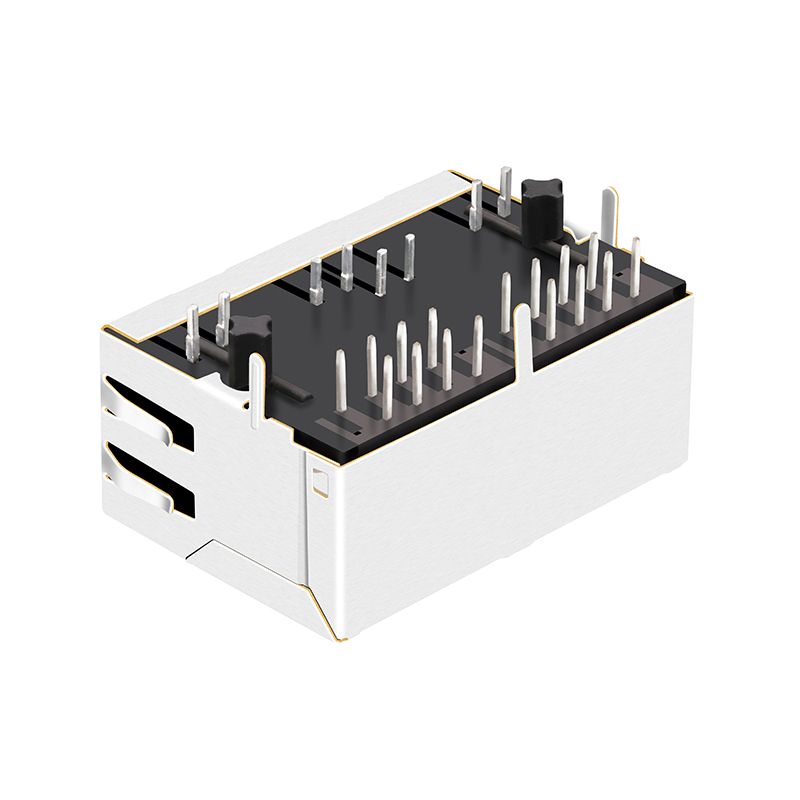

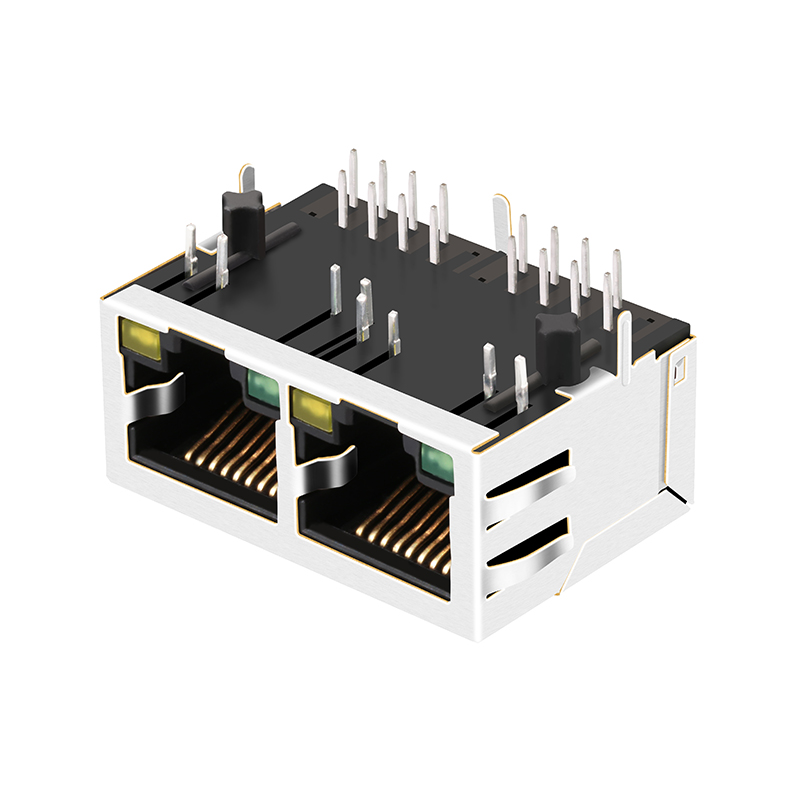

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
1 / 5
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

Send Inquiry

Product Description

Product Description

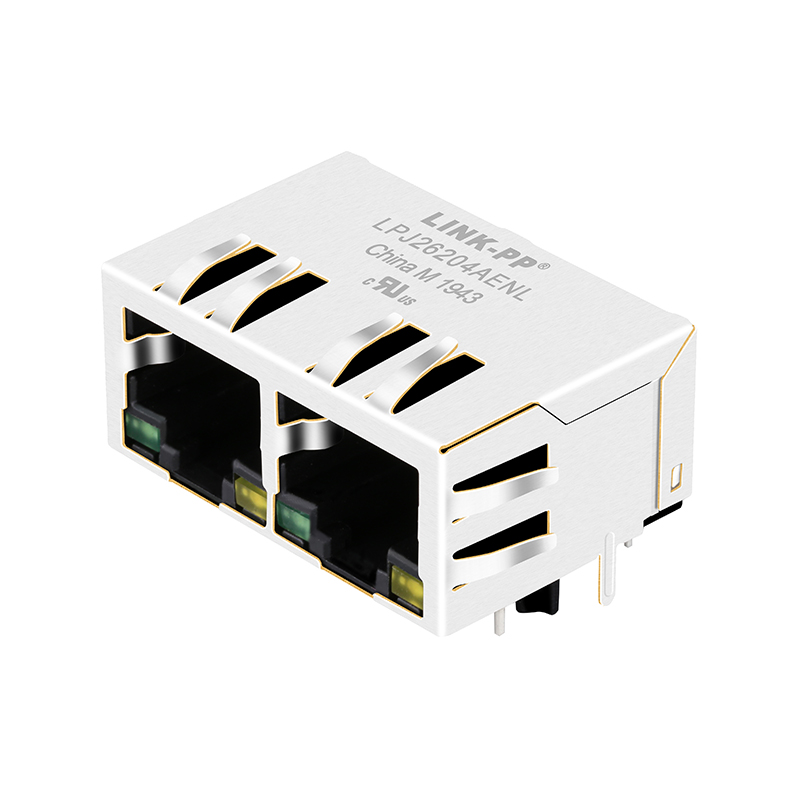

Product Image 1

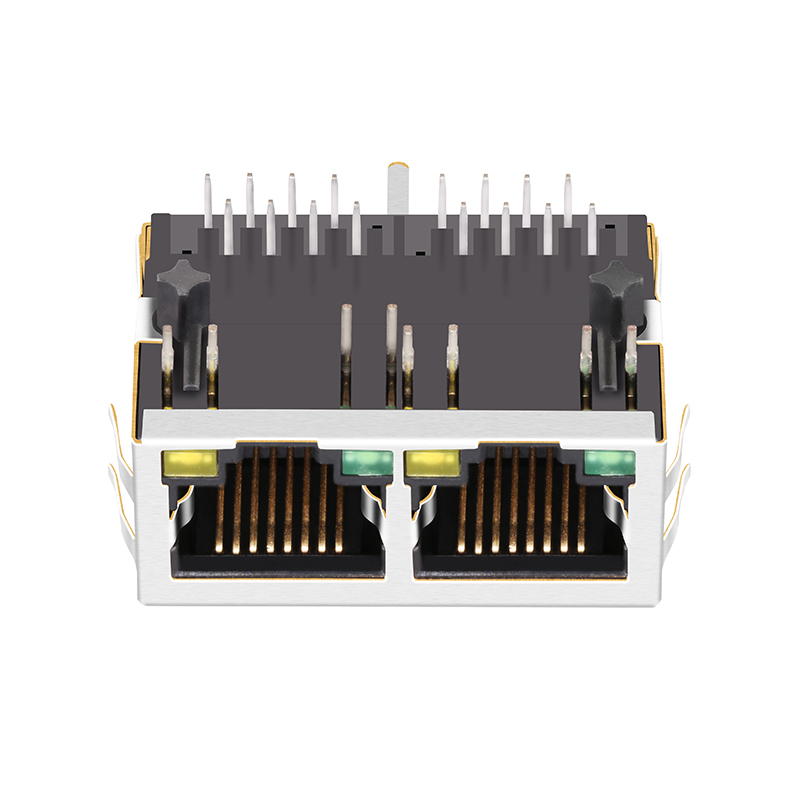

Product Image 2
Product Image 3
Specifications
Item Value
Model Number LPJ26204AENL
Part Status Active
Connector Type RJ45
Applications-Lan 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green / Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Number of Ports 1x2 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Packing & Delivery
Packaging Specifications
■ Package Type: Tray
■ Carton Size: 37 * 30 * 30 cm
■ Gross Weight (G.W./Carton): 9 kg
■ Quantity (Qty/Carton): 600 pcs
■ Standard Packaging Quantity (SPQ): 30 pcs
■ Net Weight per Piece (N.W./pcs): 0.015 kg
Package Details

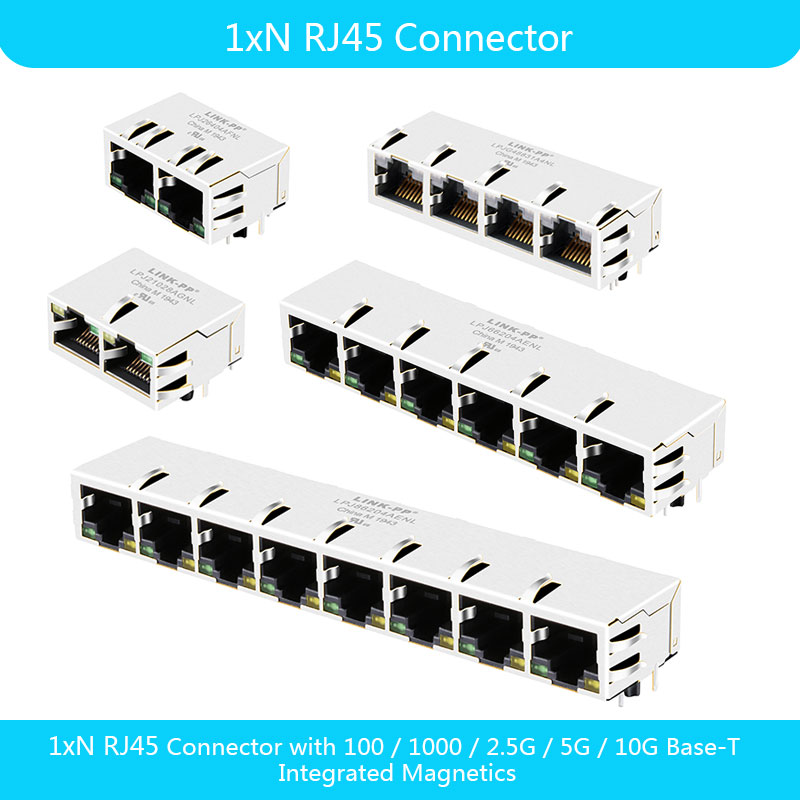

Product Layout Dimensions
10 / 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN Port RJ45 Connector

Applications:

✔ Suitable for industrial temperatures from –40 °C up to +85 °C.
✔ Compatible with Industrial Ethernet systems like EtherCAT or Profinet.
✔ Compliant with most ICs for Ethernet applications such as Microchip, Broadcom, and Marvell.
✔ Ideal for Hubs, Routers, Switches, IP cameras, and IoT applications.
Production Facilities & Standards
Facility 1
Facility 2
Facility 3
Equipment 1
Equipment 2
Testing Facility
Quality Control Room
Frequently Asked Questions
Q1: What is the operating temperature range for these RJ45 connectors?
The standard operating temperature ranges from 0°C to 70°C. For industrial environments, compatibility extends from –40 °C up to +85 °C.
Q2: Are these connectors compatible with standard industrial systems?
Yes, they are fully compatible with mainstream Industrial Ethernet systems, including EtherCAT and Profinet.
Q3: Which ICs are compatible with these components?
These components are designed to match and comply with most major ICs used in Ethernet applications, including platforms from Microchip, Broadcom, and Marvell.
Q4: How is product quality guaranteed?
Quality is maintained through a rigorous process that includes pre-production samples before mass manufacturing and 100% final inspections before delivery.
Q5: What product categories are available in this catalog?
The catalog features magnetic RJ45 connectors, LAN transformers, modular jacks, and RJ11 connectors.
Q6: What standard delivery and payment terms are supported?
Supported delivery terms include FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES. Accepted payments are processed in USD, EUR, and other major currencies via T/T, L/C, PayPal, Western Union, and Escrow.
