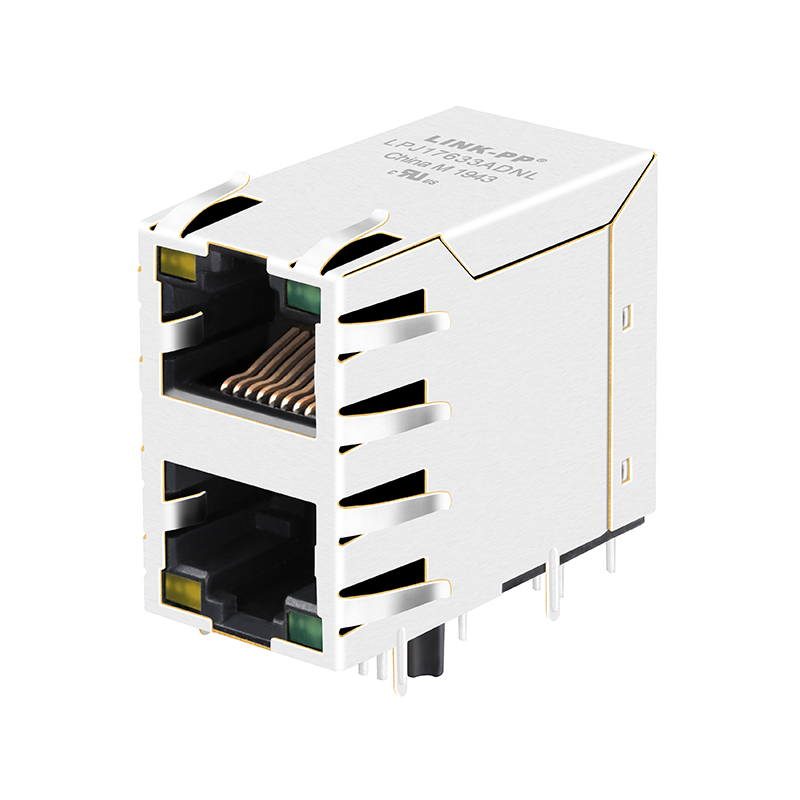

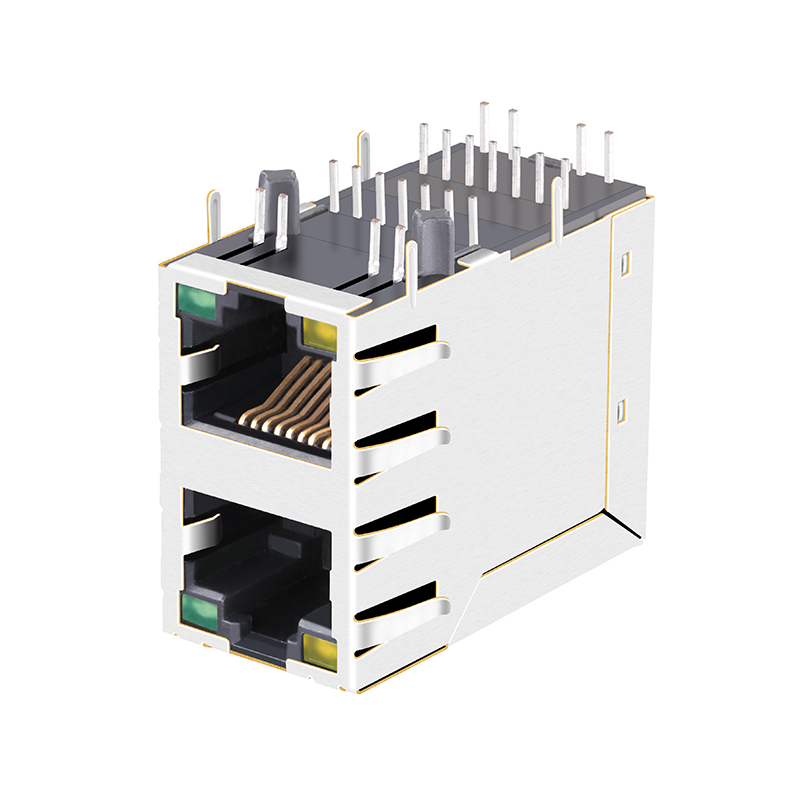

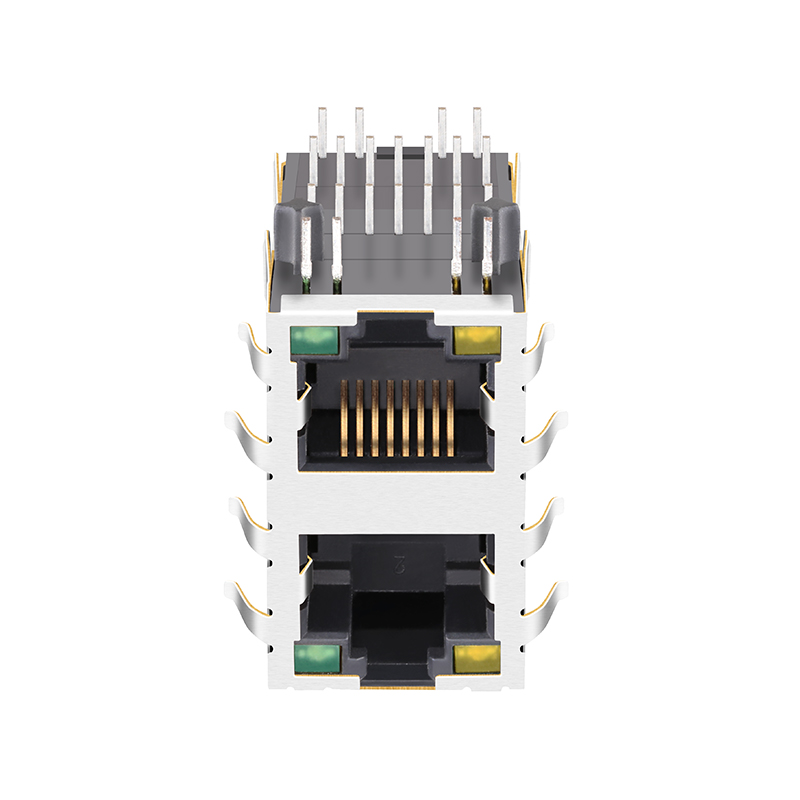

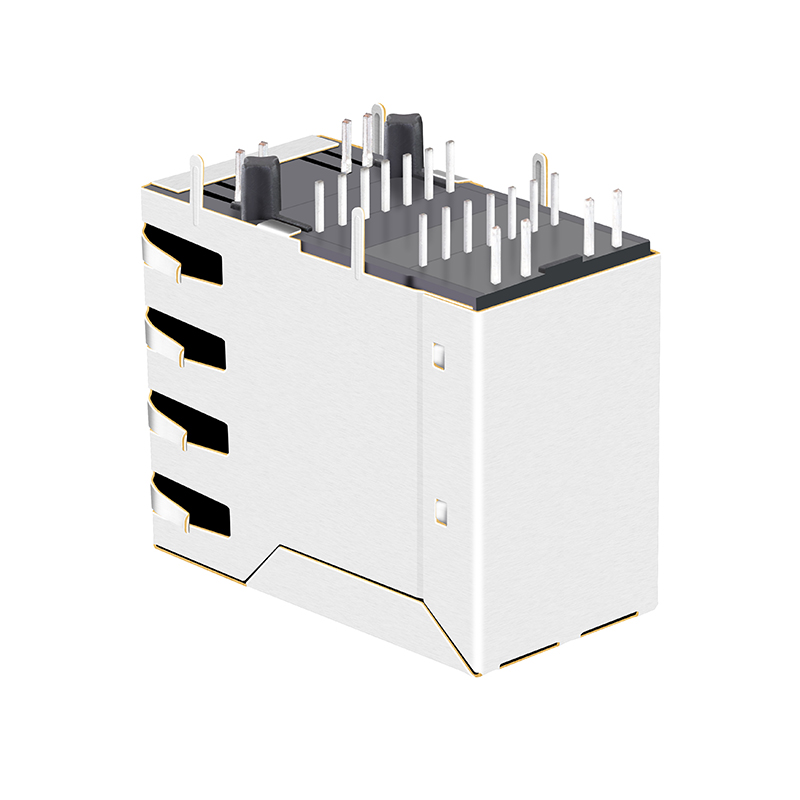

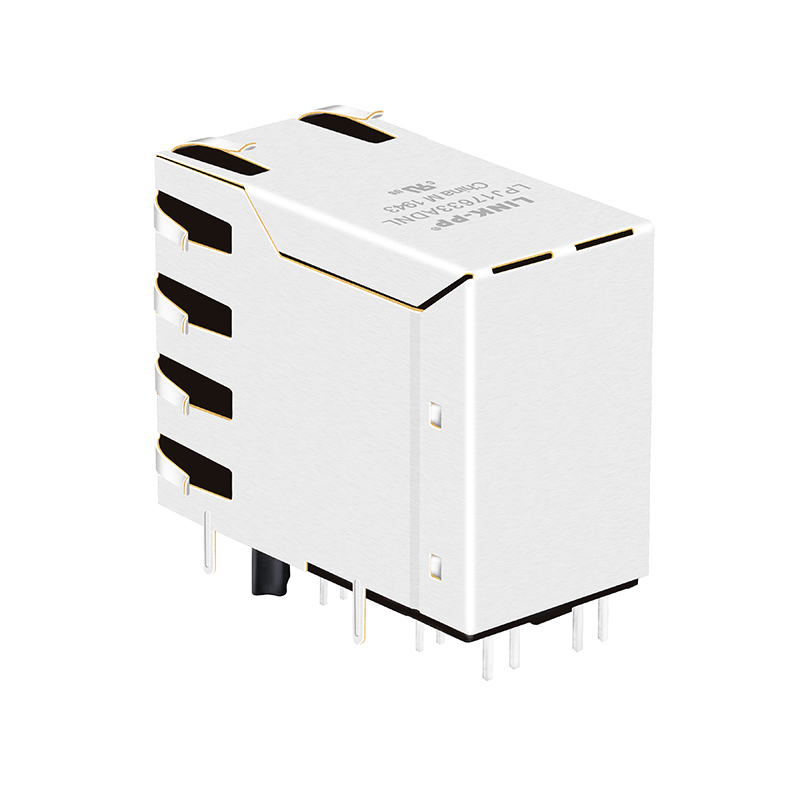

| Part Number | 0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020 |
| Application-LAN | ETHERNET(NON PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | Yellow/Green LEDS |
| Latch | UP/Down |
| Number of Ports | 2x1 Port |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 10/100 Base-T Magnetics |
| Temperature | -40 TO 85°C / 0 TO 70°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Preferred Supplier Of TI Samsung Cisco Siemens …
This modular jack supports 10/100 Base-T speed magnetics, making it ideal for standard Fast Ethernet applications.
No, this specific part number is designed for standard Ethernet applications and is rated as Non-PoE.
It is designed to work reliably under temperatures ranging from -40°C to 85°C or 0°C to 70°C depending on application requirements.
Yes, the connector is RoHS compliant, meeting RoHS-5 environmental standards with a lead in solder exemption.
To meet different durability requirements, gold plating is available in 6u", 15u", or 30u" options.
It features a 2x1 port configuration with a Side Entry PCB mount angle and THT Solder pin type.
