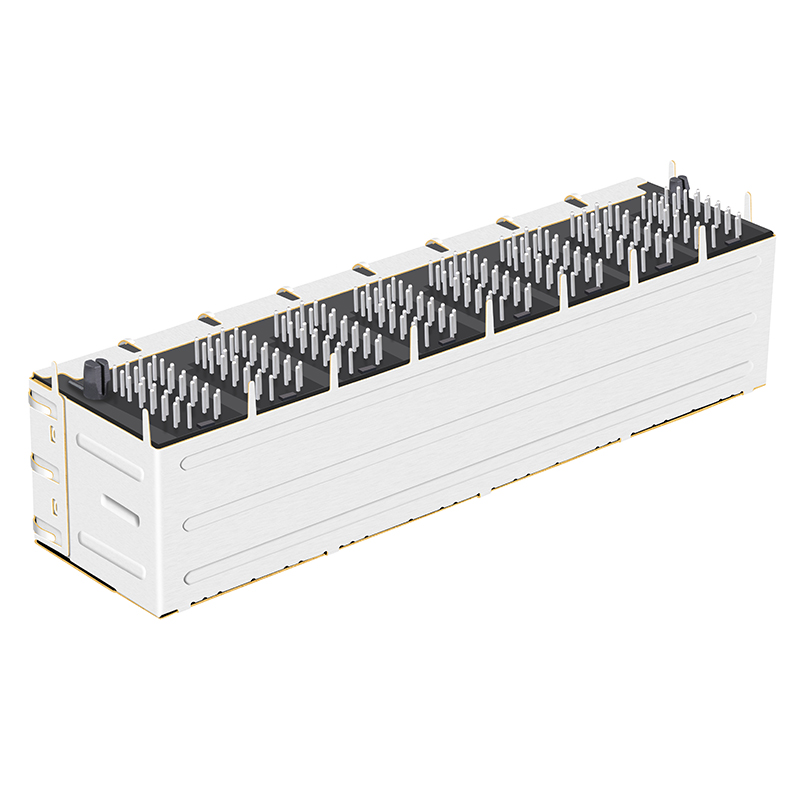

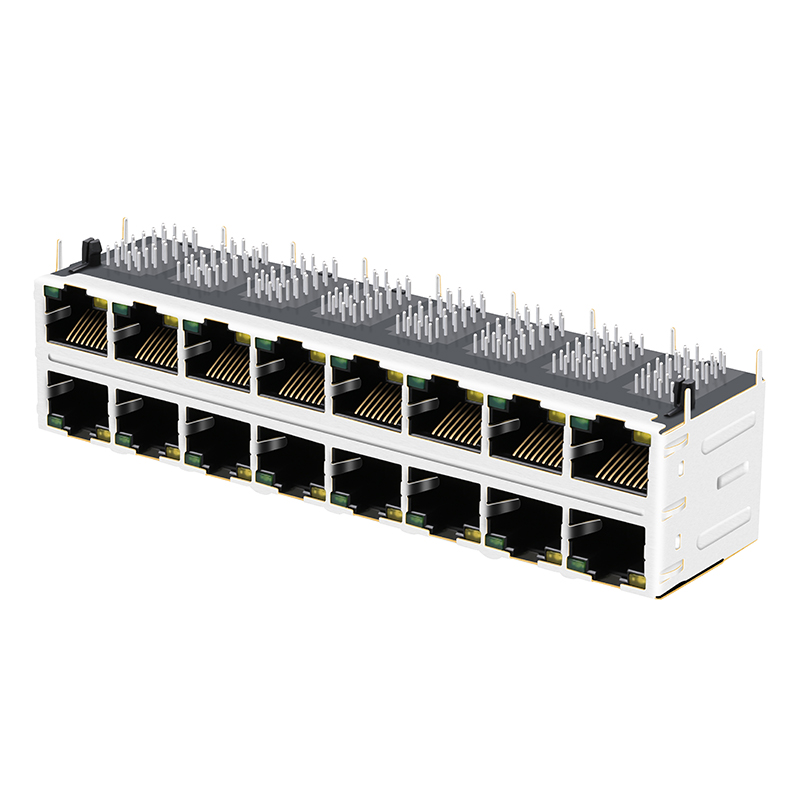

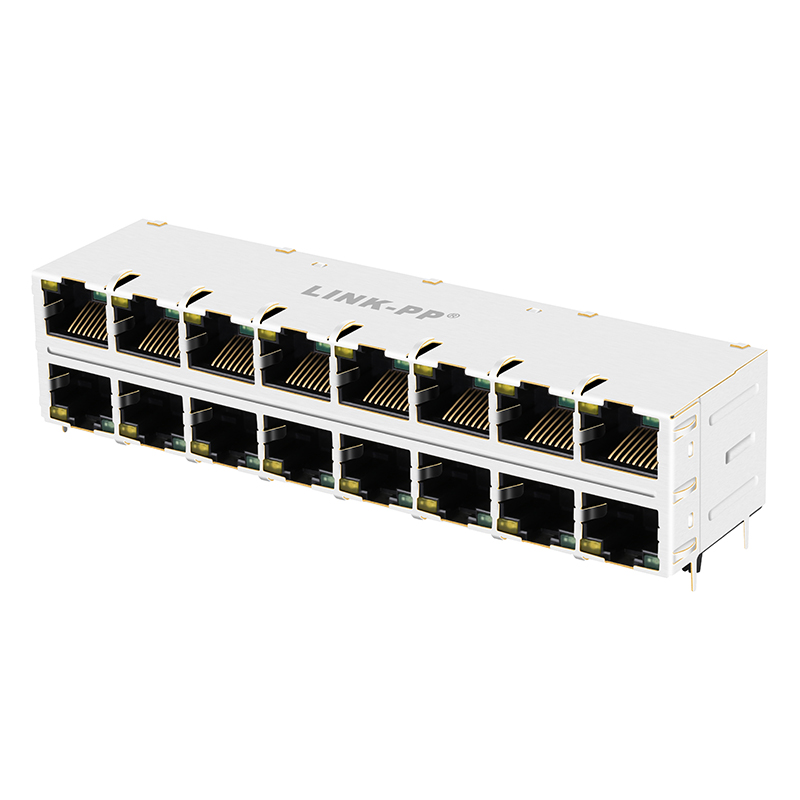

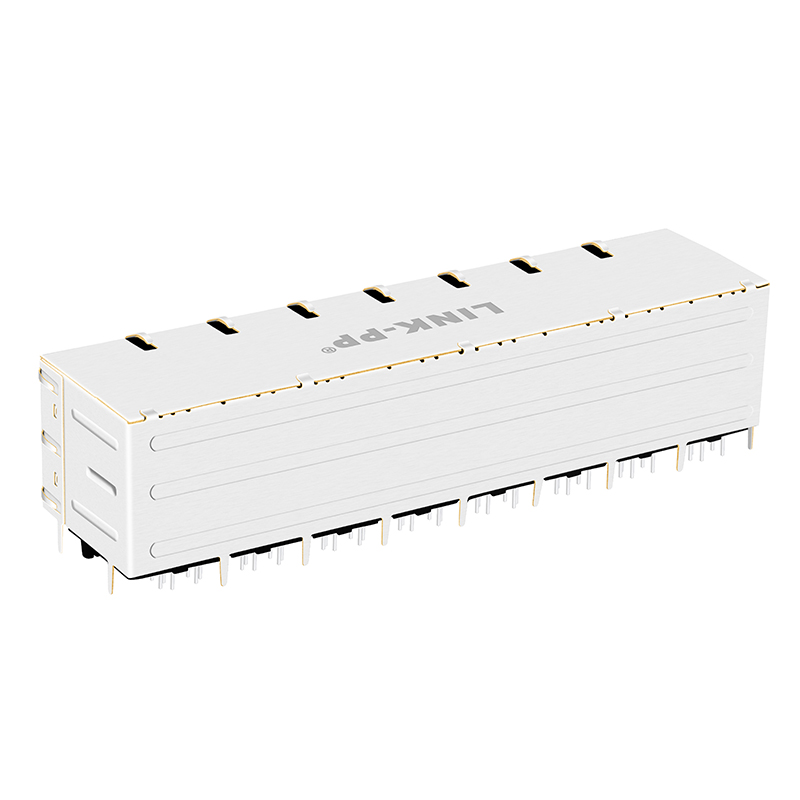

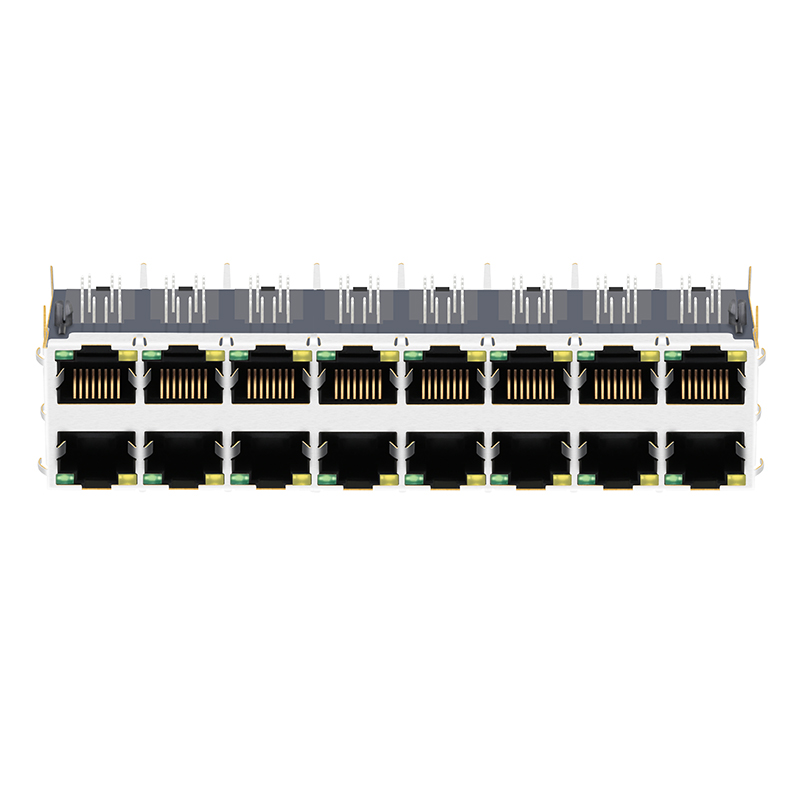

2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69

1 / 5

2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69

Send Inquiry

Product Description

Product Specifications

Part Number	RJ45 connector
Application-LAN	ETHERNET(NON POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	8
Diodes	NO DIODES
LED Option	WITH LEDS
Latch	Up/Down
Number of Ports	2x8
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	Shield, EMI Finger
Speed	10/100/1000 Base-T
Temperature	-40°C ~ 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Quality Guarantee

Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
Quality Guarantee: 6 Years

Competitive Price & Service

Highly Competitive Pricing
Delivery Time: 2-3 Weeks After Orders
Free Samples Available
Custom Design Based on Requirements
Optimized Shipping Logistics Options

Frequently Asked Questions (FAQ)

What are the primary applications for this 2 * 8 Port RJ45 Jack?

This 16-port shielded RJ45 connector is designed for standard Ethernet (Non-PoE) applications including network hubs, switches, routers, and various telecommunication equipment.

What transmission speed does this connector support?

It supports high-speed data transmission standards of 10/100/1000 Base-T, ensuring reliable Gigabit Ethernet connectivity.

Does the connector offer EMI protection?

Yes, the RJ45 jack features built-in metal shielding and EMI tabs (fingers) to effectively reduce electromagnetic interference and maintain signal integrity.

What is the operating temperature range for this product?

The connector is designed to function reliably in a wide temperature range from -40°C to 85°C, making it suitable for both commercial and industrial applications.

Is this product RoHS and environmentally compliant?

Yes, it is RoHS compliant (RoHS-5 with lead in solder exemption) and adheres to global environmental policies including Reach certifications.

Can I request samples or custom designs for this RJ45 connector?

Yes, free samples are available for evaluation, and customized design options can be provided to meet specific customer and PCB layout requirements.
